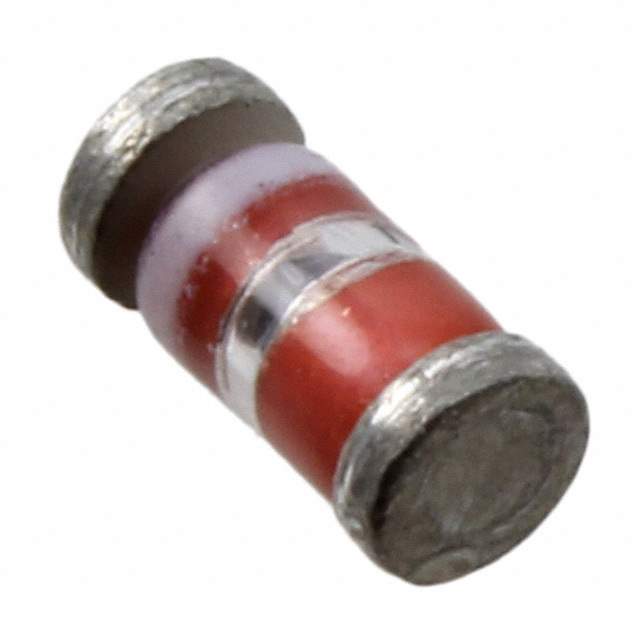

1N5523BUR-1 Real Image
Same model may have multiple batches, images only for reference.

1N5523BUR-1

Part No 1N5523BUR-1
Manufacturer Microsemi Corporation
Catalog Diodes - Zener - Single
Description DIODE ZENER 5.1V 500MW DO213AA
Datasheet
1N5523BUR-1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Status Active
Voltage - Zener (Nom) (Vz) 5.1V
Tolerance ±5%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 26 Ohm
Current - Reverse Leakage @ Vr 2μA @ 2.5V
Voltage - Forward (Vf) (Max) @ If 1.1V @ 200mA
Temperature Range - Operating -65°C to 175°C
Mounting SMD (SMT)
Case / Package DO-213AA
Win Source Part Number 138944-1N5523BUR-1
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian 1N5523BUR-1 CAD Model

Description

1N5523BUR-1 Precision Zener Diode

The 1N5523BUR-1 is a precision Zener diode used for voltage regulation and stabilization. It offers precise voltage control and is ideal for applications where maintaining a stable voltage is crucial.

  • Applications and Projects:
    • Voltage reference in power supplies
    • Voltage clipping in sensor circuits
    • Regulated power supply designs
  • Features and Benefits:
    • Tight voltage tolerance: Ensures precise voltage regulation
    • Low dynamic impedance: Improves performance in variable load conditions
    • Temperature stability: Provides reliability in varied environments
  • Additional Details:
    • Zener Voltage: 5.6V
    • Power Dissipation: 0.5W
    • Operating Temperature: -55°C to +175°C
