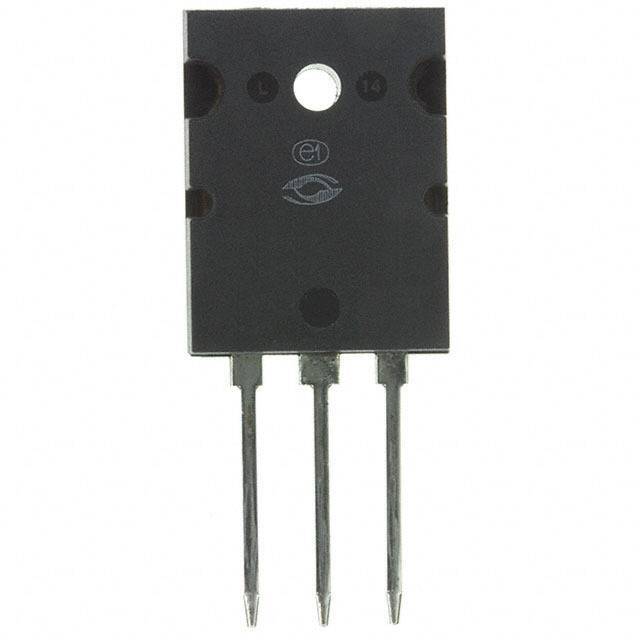

APL502LG Microsemi Corporation
Same model may have multiple batches, images only for reference.

APL502LG

Part No APL502LG
Manufacturer Microsemi Corporation
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 58A TO-264 / Trans MOSFET N-CH 500V 58A 3-Pin(3+Tab) TO-264 Tube
Datasheet
APL502LG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Tube
Channel Type Type N
Technology MOSFET
Drain Source Voltage 500V
Current - Continuous Drain (Id) @ 25°C 58A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 15V
Vgs(th) (Maximum) @ Id 4V @ 2.5mA
Input Capacitance (Ciss) (Maximum) @ Vds 9000pF @ 25V
Vgs (Maximum) ±30V
Power Dissipation (Maximum) 730W (Tc)
Rds On (Maximum) @ Id, Vgs 90 mOhm @ 29A, 12V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-264 [L]
Package TO-264-3, TO-264AA
Win Source Part Number 768650-APL502LG
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name APL502L
Introduction Date February 09, 2010
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian APL502LG CAD Model

Description

The Microsemi Corporation MOSFET is a high-performance N-channel transistor designed for use in various electronic applications.

  • Maximum Drain-Source Voltage: 500V
  • Continuous Drain Current @ 25°C: 58A
  • Gate-Source Threshold Voltage: 4V
  • Maximum Gate-Source Voltage: ±30V
  • Input Capacitance @ 25V: 9000pF
  • Maximum Power Dissipation @ Tc: 730W
  • Package: TO-264-3 or TO-264AA
  • Operating Temperature Range (TJ): -55°C to 150°C
