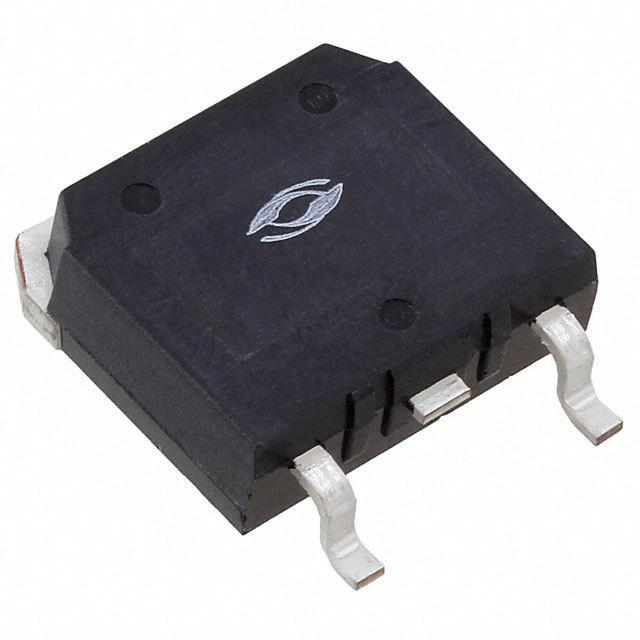

Same model may have multiple batches, images only for reference.
APT20M38SVFRG Microsemi Corporation
Same model may have multiple batches, images only for reference.

APT20M38SVFRG

Part No APT20M38SVFRG
Manufacturer Microsemi Corporation
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 200V 67A D3PAK / Trans MOSFET N-CH 200V 67A 3-Pin(2+Tab) D3PAK
Datasheet
APT20M38SVFRG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Series POWER MOS V
Packaging Tube
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 200V
Current - Continuous Drain (Id) @ 25°C 67A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 4V @ 1mA
Gate Charge (Qg) (Maximum) @ Vgs 225nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 6120pF @ 25V
Vgs (Maximum) ±30V
Power Dissipation (Maximum) 370W (Tc)
Rds On (Maximum) @ Id, Vgs 38 mOhm @ 500mA, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package D3 [S]
Package TO-268-3, D3Pak (2 Leads + Tab), TO-268AA
Win Source Part Number 768681-APT20M38SVFRG
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name APT20M38SVFRG
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian APT20M38SVFRG CAD Model

Description

The APT20M38SVFRG manufactured by Microsemi Corporation is a POWER MOS V series electronic component.

  • Package Type: TO-268-3, D3Pak (2 Leads + Tab), TO-268AA
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Maximum Power Dissipation: 370W (Tc)
  • Type: N-channel MOSFET
  • Drain Source Voltage: 200V
  • Gate Charge (Qg) (Maximum) @ Vgs: 225nC @ 10V
  • Alternative Parts: IXFT66N20QSN, IXFT66N20Q, IXFT60N20F, IXFT60N20FSN
  • Supply and Demand: Limited
