APT8024LLLG Microsemi Corporation
Same model may have multiple batches, images only for reference.

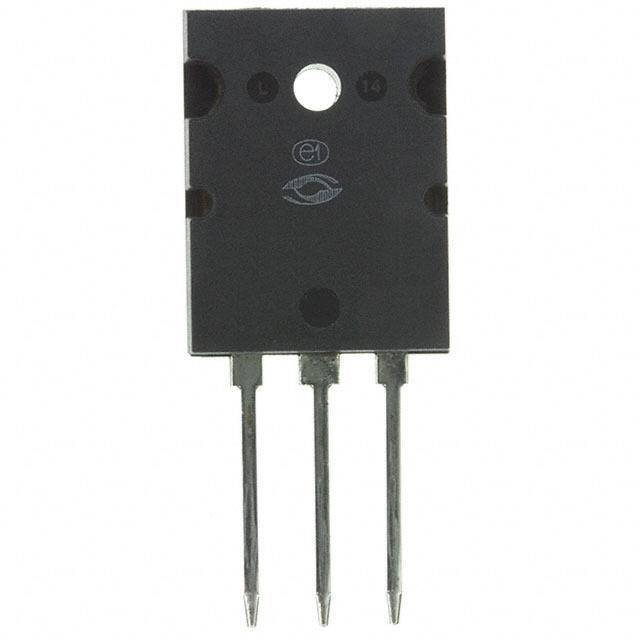

APT8024LLLG

Part No APT8024LLLG
Manufacturer Microsemi Corporation
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 800V 31A TO-264 / Trans MOSFET N-CH 800V 31A 3-Pin(3+Tab) TO-264
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Series POWER MOS 7
Packaging Tube
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 800V
Current - Continuous Drain (Id) @ 25°C 31A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 5V @ 2.5mA
Gate Charge (Qg) (Maximum) @ Vgs 160nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 4670pF @ 25V
Vgs (Maximum) ±30V
Power Dissipation (Maximum) 565W (Tc)
Rds On (Maximum) @ Id, Vgs 240 mOhm @ 15.5A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-264 [L]
Package TO-264-3, TO-264AA
Win Source Part Number 768718-APT8024LLLG
Popularity Medium
Supply and Demand Status Limited
Family Name APT8024LLL
Introduction Date September 21, 2001
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian APT8024LLLG CAD Model

Description

The APT8024LLLG is a POWER MOS 7 series MOSFET manufactured by Microsemi Corporation.

  • Package: TO-264-3, TO-264AA
  • Operating Temperature Range (TJ): -55°C to 150°C
  • Continuous Drain Current (Tc): 31A
  • Maximum Rds On: 240 mOhm @ 15.5A, 10V
  • Gate Charge (Qg) maximum @ 10V: 160nC
  • Input Capacitance (Ciss) maximum @ 25V: 4670pF
  • Drain-Source Voltage: 800V
  • Gate-Source Voltage (maximum): ±30V
  • Status: Obsolete (EOL)
  • Alternatives: IXFK34N80SN, STW23N85K5, IXFK34N80, IXFX34N80
