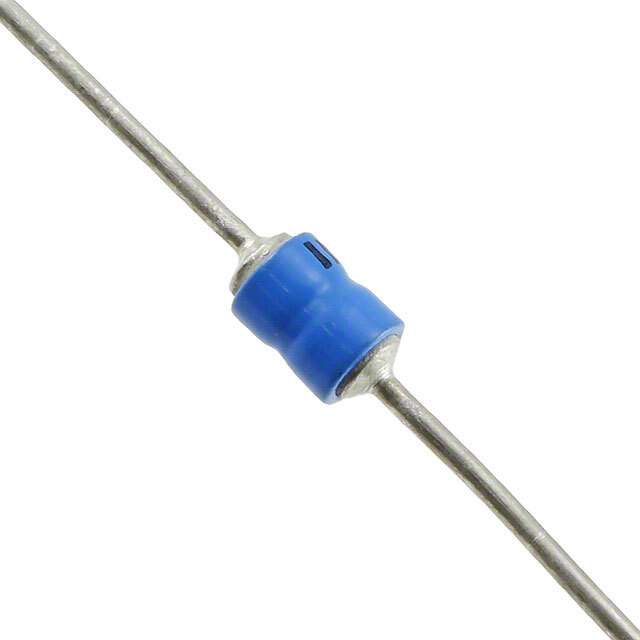

JAN1N5420 Real Image
Same model may have multiple batches, images only for reference.

JAN1N5420

Part No JAN1N5420
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description FAST RECTIFIERS | DIODE GEN PURP 600V 3A AXIAL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 600V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Maximum) at If 1.5V at 9A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 400ns
Current - Reverse Leakage at Vr 1μA at 600V
Mounting Style Through Hole
Manufacturer Package B, Axial
Supplier Device Package B, Axial
Operating Temperature - Junction -65°C ~ 175°C
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191365-JAN1N5420
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JAN1N5420 CAD Model

Description

The Microsemi Corporation 1191365-JAN1N5420 is a high-performance standard diode designed for use in discrete semiconductor products.

  • Manufacturer: Microsemi Corporation
  • Type: Standard Diode
  • Voltage Rating: 600V
  • Forward Voltage: 1.5V @ 9A
  • Current Average Rectified (Io): 3A
  • Reverse Recovery Time (trr): 400ns
  • Package: B, Axial
  • Operating Temperature: -65°C to 175°C
  • Supply and Demand Status: Limited
  • Application: Fast Recovery Applications
