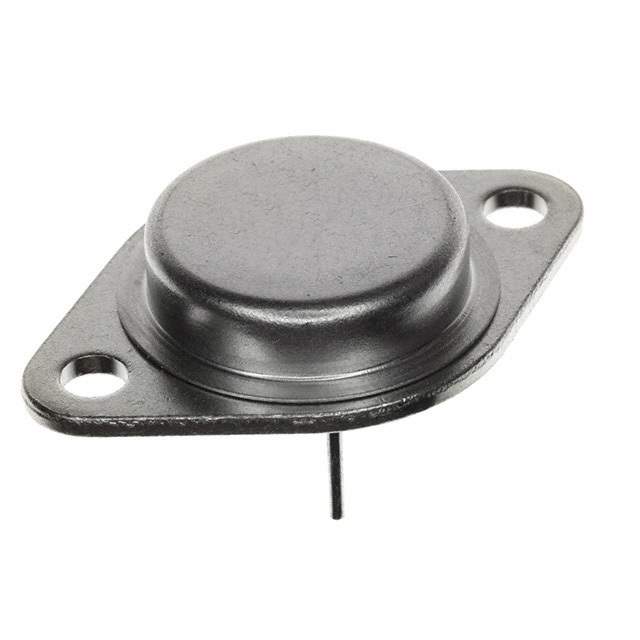

JANTX2N6052 Real Image
Same model may have multiple batches, images only for reference.

JANTX2N6052

Part No JANTX2N6052
Manufacturer Microsemi Corporation
Catalog Transistors (BJT) - Single
Description PNP DARLINGTON POWER SILICON TRANSISTOR | TRANS PNP DARL 100V 12A TO-3
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Transistor Type PNP - Darlington
Current - Collector (Ic) (Maximum) 12A
Voltage - Collector Emitter Breakdown (Maximum) 100V
Vce Saturation (Maximum) at Ib, Ic 3V at 120mA, 12A
Current - Collector Cutoff (Maximum) 1mA
DC Current Gain (hFE) (Minimum) at Ic, Vce 1000 at 6A, 3V
Maximum Power 150W
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package TO-204AA, TO-3
Supplier Device Package TO-204AA (TO-3)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191516-JANTX2N6052
Manufacturer Homepage www.micrel.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTX2N6052 CAD Model

Description

The Microsemi Corporation PNP-Darlington transistor is a high power, high voltage device designed for use in a variety of applications.

  • Maximum Collector Current: 12A
  • Breakdown Voltage: 100V
  • Mounting: Through a hole
  • Package: TO-204AA (TO-3)
  • Current Collector Cutoff: 1mA
  • Operating Temperatures: -55°C to 175°C
  • DC Current Gain: 1000 @ 6A and 3V
