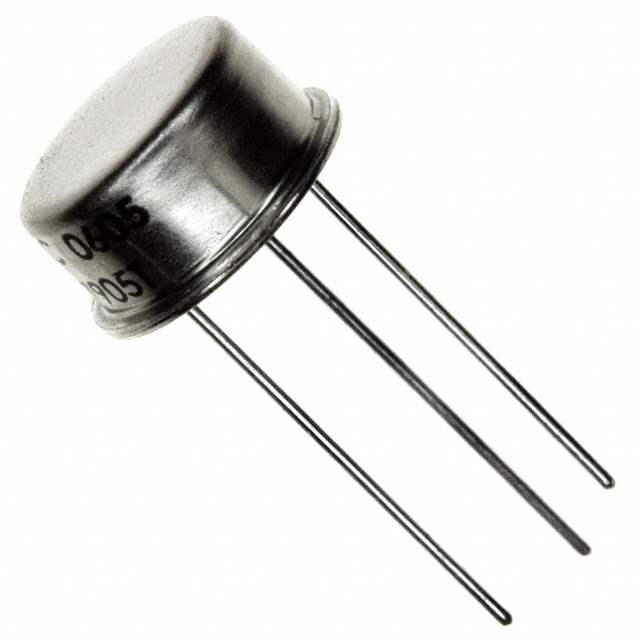

The Microsemi Corporation 2N6796 MOSFET is an obsolete (EOL) N-channel polarity part that comes in a TO-205AF (TO-39) package.

• Package: TO-205AF (TO-39)
• Maximum Power Dissipation: 800mW (Ta), 25W (Tc)
• Drain-Source Breakdown Voltage: 100V
• Continuous Drain Current @ 25°C: 8A (Tc)
• Gate-Source Threshold Voltage: 4V @ 250μA
• Maximum Gate Charge: 28.51nC @ 10V
• Maximum Rds On @ Id,Vgs: 195 mOhm @ 8A, 10V
• Family Name: 2N6796
• Popularity: high
• EOL Date: obsolete
• Suitable for: discrete semiconductor products applications
• ECCN: EAR99
