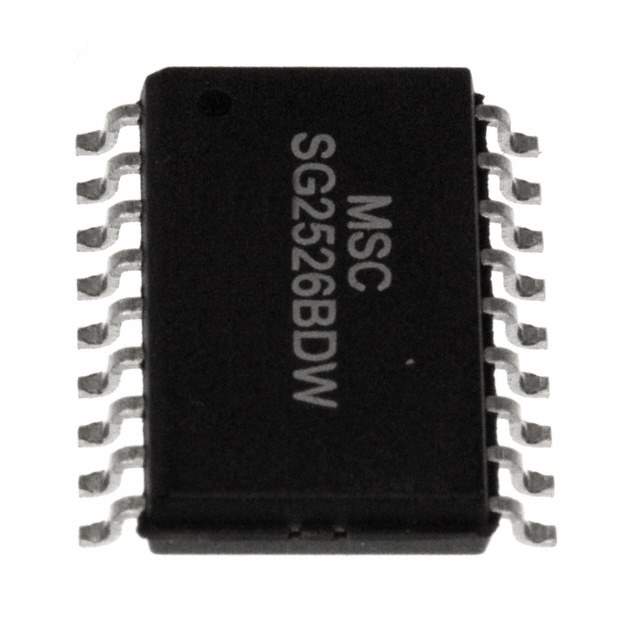

SG2526BDW Real Image
Same model may have multiple batches, images only for reference.

SG2526BDW

Part No SG2526BDW
Manufacturer Microsemi Corporation
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK/FLYBACK 18SOIC
Datasheet
SG2526BDW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microsemi Corporation
Status Active
Output Type Transistor Driver
Purpose Step-Down, Step-Up/Step-Down
Topology Buck, Flyback
Number of Outputs 2
Output Phases 1
Supply Voltage - Operating 8 V to 35 V
Frequency - Switching 1Hz to 500kHz
Duty Cycle (Max) 49%
Synchronous Rectifier Yes
Clock Sync No
Control Features Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Temperature Range - Operating -25°C to 85°C (TA)
Case / Package 18-SOIC
Win Source Part Number 1095483-SG2526BDW
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SG2526BDW CAD Model

Description

The Microsemi Corporation SG2526BDW is an integrated circuit that is used as a transistor driver.

  • Manufacturer: Microsemi Corporation
  • Product Name: SG2526BDW
  • Function: transistor driver
  • Topology: buck and flyback
  • Frequency Switching Range: 1Hz to 500kHz
  • Control Features: dead time control, enable, frequency control, reset, and soft start
  • Outputs: two
  • Synchronous Rectifier: enabled
  • Output Phases: one
  • Duty Cycle: 49%
  • Clock Sync: not available
  • Supply and Demand Status: balanced
  • Purpose: step-down and step-up/step-down
  • Operating Temperature Range: -25°C to 85°C (TA)
  • Case/Package: 18-SOIC
  • Supply Voltage Range: 8 V to 35 V
