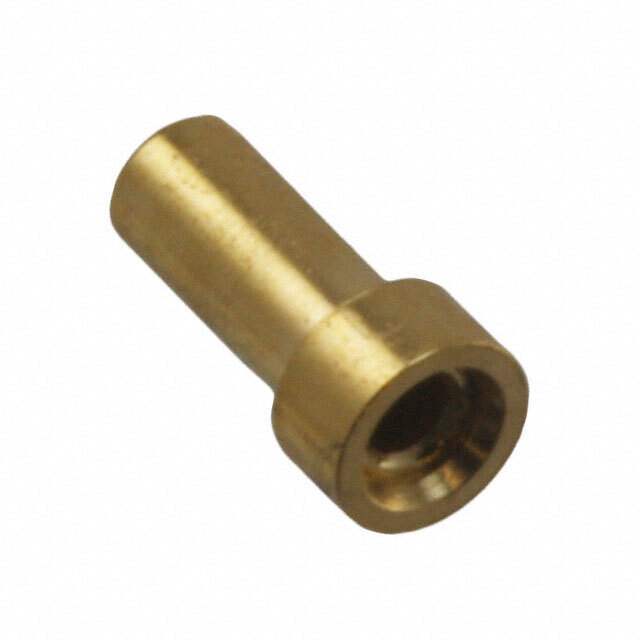

0555-0-15-15-20-27-10-0 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

0555-0-15-15-20-27-10-0

Part No 0555-0-15-15-20-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .015-.025 SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207208-0555-0-15-15-20-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Category Connectors, Interconnects -Terminals -PC Pin Receptacles, Socket Connectors
Series 0555
Package Bulk
Product Status Active
Tail Type No Tail
Termination Solder
Accepts Pin Diameter 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Mounting Hole Diameter 0.053" (1.35mm)
Length - Overall 0.160" (4.06mm)
Contact Finish Thickness 30.0µin (0.76µm)
Operating Temperature -55°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian 0555-0-15-15-20-27-10-0 CAD Model

Description

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Solder
