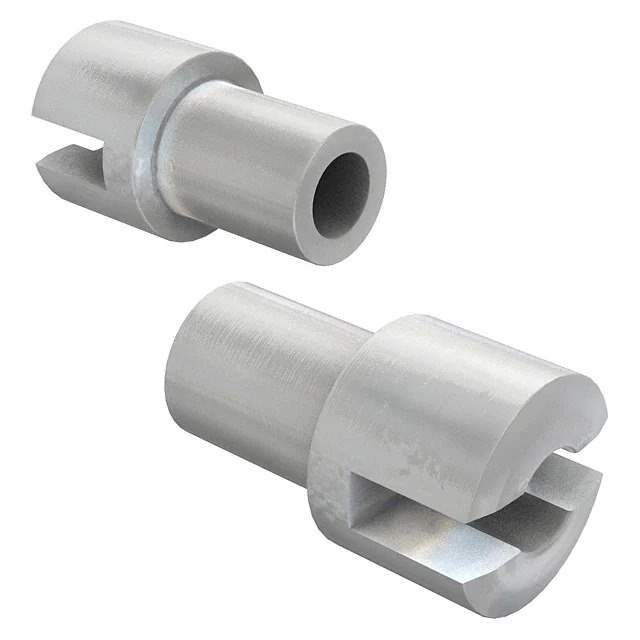

2104-1-01-01-00-00-07-0 Real Image
Same model may have multiple batches, images only for reference.

2104-1-01-01-00-00-07-0

Part No 2104-1-01-01-00-00-07-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PC PIN CIRC .047DIA TINLEAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - PC Pin, Single Post Connectors
Mfr Mill-Max Manufacturing Corp.
Series 2104
Package Bulk
Product Status Active
Terminal Type PC Pin
Terminal Style Single End, Slotted
Pin Size - Above Flange 0.047" (1.19mm) Dia
Length - Above Flange 0.070" (1.78mm)
Length - Below Flange 0.055" (1.40mm)
Length - Overall 0.125" (3.18mm)
Flange Diameter 0.047" (1.19mm)
Mounting Hole Diameter 0.036" (0.91mm)
Mounting Type Through Hole
Termination Swage
Insulation Non-Insulated
Board Thickness 0.031" (0.79mm)
Contact Material Brass Alloy
Contact Finish Tin-Lead
Contact Finish Thickness 200.0µin (5.08µm)
Base Product Number 2104-1
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 853651-2104-1-01-01-00-00-07-0
Ultra Librarian 3D Model Ultra Librarian 2104-1-01-01-00-00-07-0 CAD Model

Description

The 853651-2104-1-01-01-00-00-07-0 is a single post connector terminal from Mill-Max Manufacturing Corp.

  • Series: 2104
  • Mounting: Through-Hole
  • Termination: Swage
  • Contact Finish: Tin-Lead
  • Overall Length: 0.125"
  • Flange Diameter: 0.047"
  • Insulation: Non-Insulated
  • Board Thickness: 0.031"
  • Packaging: Bulk
  • Standard Package: 1,000 pieces
  • REACH: Not Affected
  • Moisture Sensitivity Level: 1
