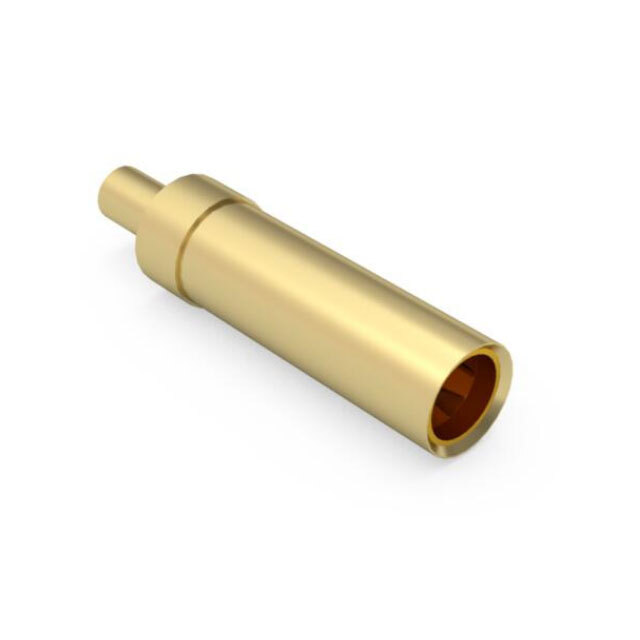

Same model may have multiple batches, images only for reference.
4274-0-19-15-08-27-10-0 Mill-Max Manufacturing Corp. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

4274-0-19-15-08-27-10-0

Part No 4274-0-19-15-08-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description Pin Receptacle Connector 0.084" ~ 0.102" (2.13mm ~ 2.59mm) Crimp Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Mill-Max Manufacturing Corp.
Series 4274
Packaging Bulk
Tail Type Crimp
Termination Solder
Length - Overall 0.630" (16.00mm)
Accepts Pin Diameter 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Pin Hole Diameter 0.122" (3.10mm)
Flange Diameter 0.155" (3.94mm)
Socket Depth 0.380" (9.65mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Temperature Range - Operating -55°C ~ 125°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1481710-4274-0-19-15-08-27-10-0
Ultra Librarian 3D Model Ultra Librarian 4274-0-19-15-08-27-10-0 CAD Model
