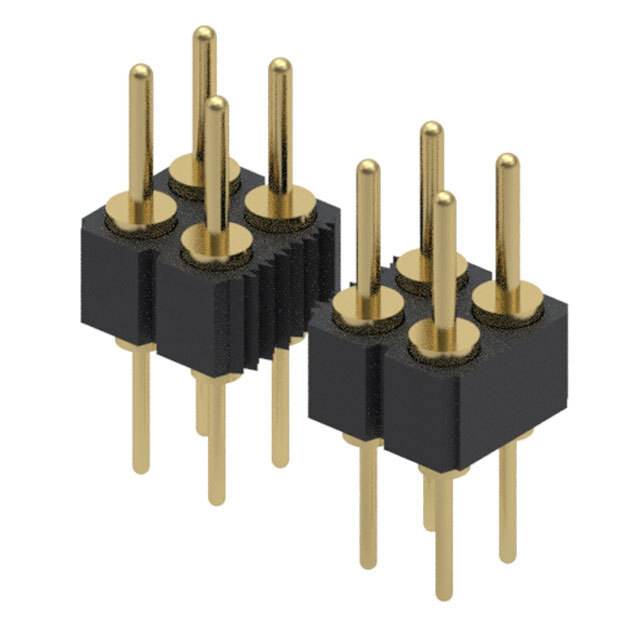

Same model may have multiple batches, images only for reference.

450-10-264-00-001000

Name: 450-10-264-00-001000
Brand: Mill-Max Manufacturing Corp.
SKU: 546041
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	450-10-264-00-001000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	HEADER STRIPS .100” Grid Solder Tail Double Row \| CONN HEADER VERT 64POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	64
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.166" (4.22mm)
Contact Length - Post	0.156" (3.96mm)
Overall Contact Length	0.477" (12.12mm)
Insulation Height	0.110" (2.79mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Contact Finish - Post	Gold
Contact Material	Brass Alloy
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Insulation Color	Black
Contact Finish Thickness - Post	10.0μin (0.25μm)
Manufacturer Pack Quantity	6
MSL Level	1 (Unlimited)
Win Source Part Number	1128729-450-10-264-00-001000
Manufacturer Homepage	www.mill-max.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 450-10-264-00-001000 CAD Model

Alternative Products

Description

The 1128729-450-10-264-00-001000 is a board-to-board style connector manufactured by Mill-Max Manufacturing Corp.

Number of Positions: 64
Contact Gender: Male
Mounting Type: Through Hole
Contact Material: Brass Alloy
Termination: Solder
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0μin (0.25μm)
Contact Finish - Post: Gold
Contact Finish Thickness - Post: 10.0μin (0.25μm)
Row Spacing - Mating: 0.100" (2.54mm)
Overall Contact Length: 0.477" (12.12mm)
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
Insulation Color: Black
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 6
MSL Level: 1 (Unlimited)
Operating Temperature Range: No specified temperature range
Application: Connectors and Interconnects
