Same model may have multiple batches, images only for reference.

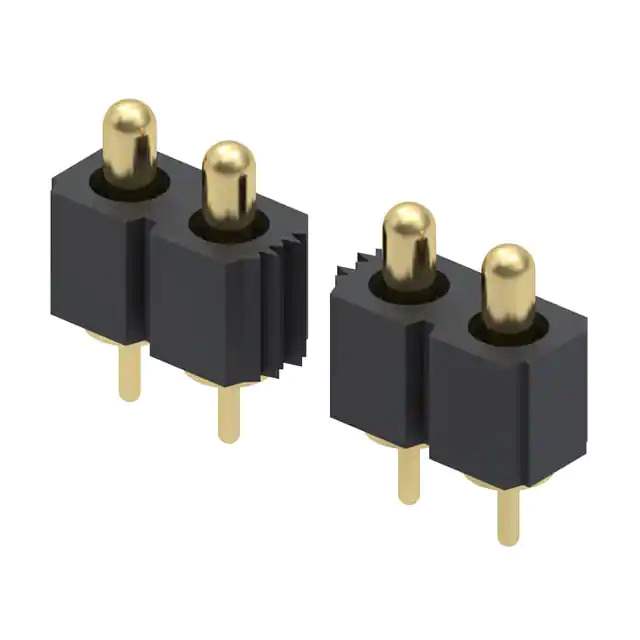

821-22-005-10-002101 Real Image
Same model may have multiple batches, images only for reference.

821-22-005-10-002101

Part No 821-22-005-10-002101
Manufacturer Mill-Max Manufacturing Corp.
Catalog Contacts, Spring Loaded and Pressure
Description CONN SPRING PISTON 5POS PCB / 5 Position Spring Piston Connector Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Spring Loaded
Mfr Mill-Max Manufacturing Corp.
Series 821
Package Bulk
Connector Type Piston
Number of Contacts 5
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Base Product Number 821-22
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1336910-821-22-005-10-002101
Ultra Librarian 3D Model Ultra Librarian 821-22-005-10-002101 CAD Model

Description

The 821-22-005-10-002101 is a rectangular connector that is part of the 821 series.

  • Series: 821
  • Connector Type: Piston
  • Pitch: 0.100 inches (2.54mm)
  • Number of Rows: 1
  • Number of Contacts: 5
  • Contact Finish: Gold
  • Contact Finish Thickness: 20.0µin (0.51µm)
  • Contact Material: Copper Alloy
  • Mounting Type: Through Hole
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS: 8536.69.4040
  • Manufacturer: Mill-Max Manufacturing Corp.
