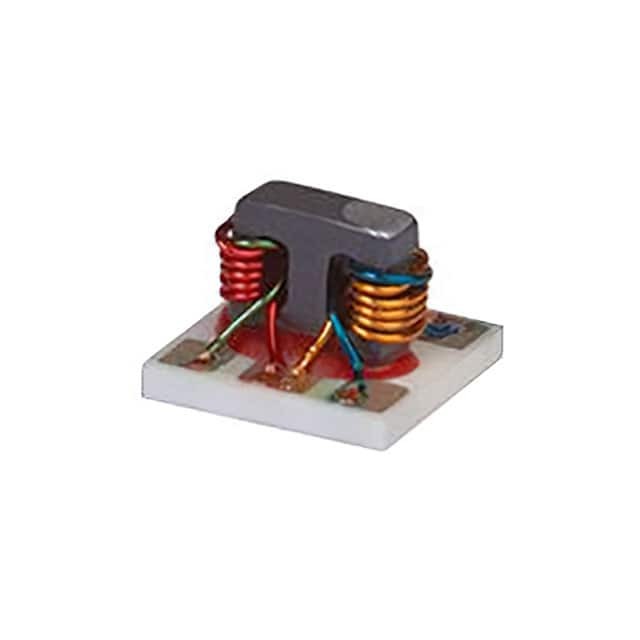

Same model may have multiple batches, images only for reference.
DBTC-12-4-75+
Same model may have multiple batches, images only for reference.

DBTC-12-4-75+

Part No DBTC-12-4-75+
Manufacturer Mini-Circuits
Catalog RF Directional Coupler
Description RF DIR COUPLER 5MHZ-1.2GHZ 5SMD
Datasheet
DBTC-12-4-75+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Directional Coupler
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Coupler Type Standard
Frequency 5MHz ~ 1.2GHz
Coupling Factor 12 ± 0.5dB
Applications CATV
Power - Max 1W
Return Loss 26.61dB
Package / Case 5-SMD Module
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 868258-DBTC-12-4-75+
Ultra Librarian 3D Model Ultra Librarian DBTC-12-4-75+ CAD Model

Description

The Win Source Part Number 868258-DBTC-12-4-75+ is an RF directional coupler designed for CATV applications.

  • Power Handling Capacity: 1W
  • Frequency Range: 5MHz to 1.2GHz
  • Coupling Factor: 12 ± 0.5dB
  • Return Loss: 26.61dB
  • Package: 5-SMD module
  • Suitable for: Surface mount applications
  • Manufacturer: Mini-Circuits
  • Standard Package: 2,000 pcs
