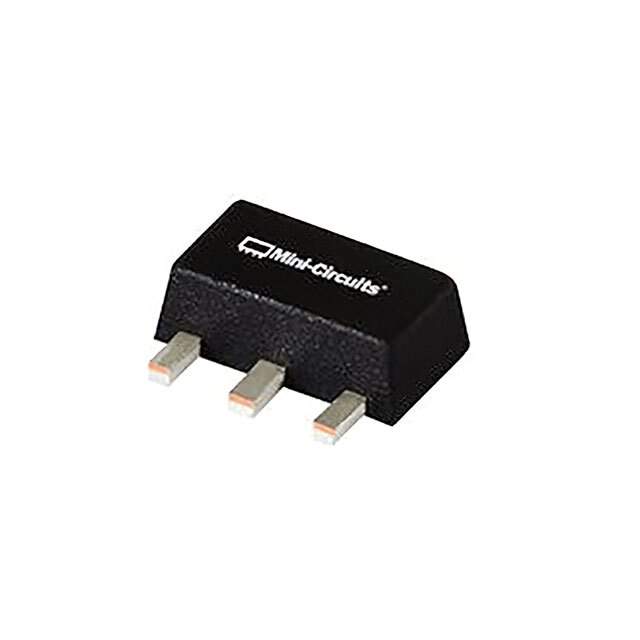

The GALI-55 is a GaAs MMIC Low Noise Amplifier (LNA) manufactured by Mini-Circuits. It is designed for applications requiring high gain, low noise figure, and excellent linearity over a broad frequency range. The amplifier is typically used in receiver front-ends to amplify weak signals while adding minimal noise, thereby improving overall system sensitivity.

Applications:

• GPS Receivers: Amplifying the weak GPS signals received by the antenna.
• Satellite Communications: Used in LNBs (Low Noise Block downconverters) to amplify the signals received from the satellite dish.
• Wireless Communication Systems: Employed in base stations and mobile devices to improve receiver sensitivity.
• Test and Measurement Equipment: Incorporated in spectrum analyzers and network analyzers to improve dynamic range.
• Radar Systems: Used in radar receivers to amplify the echo signals.

Features:

• High Gain: Provides substantial signal amplification to boost weak signals.
• Low Noise Figure: Minimizes added noise, preserving the signal-to-noise ratio.
• Wideband Performance: Operates effectively over a broad frequency range.
• Internally Matched: Simplifies integration by reducing the need for external matching components.
• Unconditionally Stable: Ensures stable operation under various load conditions.

Benefits:

• Improved Receiver Sensitivity: Enhances the ability to detect weak signals, improving system performance.
• Increased Communication Range: Allows for reliable communication over longer distances.
• Enhanced Signal Quality: Minimizes noise and distortion, resulting in clearer and more reliable signals.
• Simplified System Design: Reduces the complexity and cost of designing receiver systems.
• Robust Performance: Provides stable and reliable operation in various environments.

Additional Details:

The GALI-55 typically operates from a single positive supply voltage. Its small size and surface-mount package make it suitable for compact and high-density designs. The amplifier is fabricated using GaAs MMIC technology, which provides excellent performance characteristics. The typical frequency range of the GALI-55 is from approximately 50 MHz to several GHz, although this varies based on specific configurations and component selection in the application circuit. The amplifier's gain is typically around 15-20 dB, and the noise figure is typically below 3 dB. The input and output are internally matched to 50 ohms to allow for simplified integration into RF systems.
