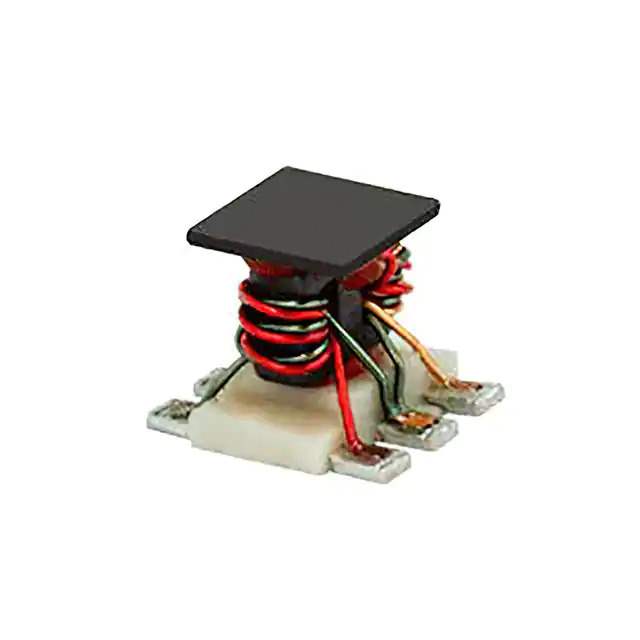

TCD-16-122-75X+ Real Image
Same model may have multiple batches, images only for reference.

TCD-16-122-75X+

Part No TCD-16-122-75X+
Manufacturer Mini-Circuits
Catalog RF Directional Coupler
Description RF DIR COUPLER 5MHZ-1.25GHZ 6SMD
Datasheet
TCD-16-122-75X+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Directional Coupler
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Coupler Type Standard
Frequency 5MHz ~ 1.25GHz
Coupling Factor 16.5 ± 0.5dB
Applications CATV, Cellular
Power - Max 1W
Return Loss 32.2dB
Package / Case 6-SMD, Flat Leads
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 936241-TCD-16-122-75X+
Ultra Librarian 3D Model Ultra Librarian TCD-16-122-75X+ CAD Model

Description

The Mini-Circuits 936241-TCD-16-122-75X+ is an RF directional coupler designed for applications in the RF and Wireless category.

  • Applications: CATV and cellular applications
  • Frequency Range: 5MHz to 1.25GHz
  • Coupling Factor: 16.5 ± 0.5dB
  • Return Loss: 32.2dB
  • Package: 6-SMD, Flat Leads package
  • Manufacturer: Mini-Circuits
