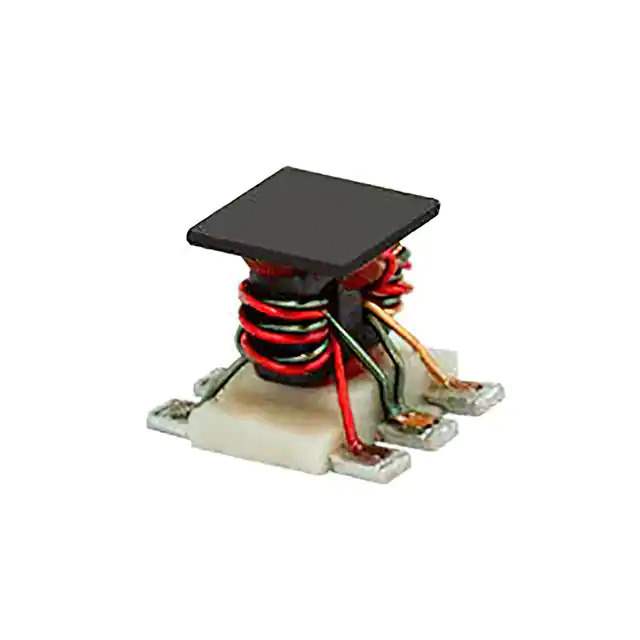

TCM1-63AX-2+ Real Image
Same model may have multiple batches, images only for reference.

TCM1-63AX-2+

Part No TCM1-63AX-2+
Manufacturer Mini-Circuits
Catalog Balun
Description RF TRANSFORMER SMT, 10 - 6000 MH
Datasheet
TCM1-63AX-2+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 10MHz ~ 6GHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Phase Difference 8°
Insertion Loss (Max) 2.5dB
Return Loss (Min) 9.42dB
Package / Case 6-SMD, Flat Leads
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 936250-TCM1-63AX-2+
Ultra Librarian 3D Model Ultra Librarian TCM1-63AX-2+ CAD Model

Description

The 936250-TCM1-63AX-2+ is a Balun designed for use in RF and wireless applications.

  • Package: 6-SMD, Flat Leads package
  • Package: 2,000 pcs
  • Frequency Range: 10MHz to 6GHz
  • Phase Difference: 8°
  • Maximum Insertion Loss: 2.5dB
  • Minimum Return Loss: 9.42dB
  • Mounting Type: surface mount
  • Manufacturer: Mini-Circuits
  • Product Status: active
