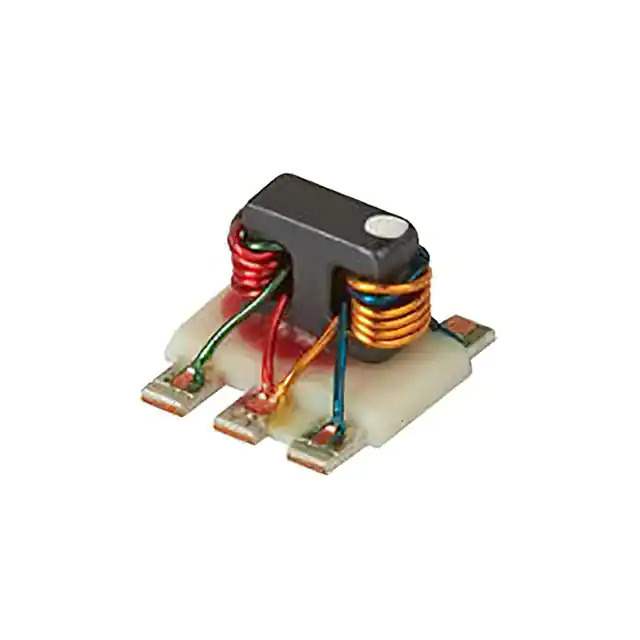

TCM4-25+ Real Image
Same model may have multiple batches, images only for reference.

TCM4-25+

Part No TCM4-25+
Manufacturer Mini-Circuits
Catalog Balun
Description 1:4 CORE & WIRE TRANSFORMER, 500
Datasheet
TCM4-25+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 500MHz ~ 2.5GHz
Insertion Loss (Max) 3dB
Return Loss (Min) 6.09dB
Package / Case 6-SMD, Flat Leads
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 360396-TCM4-25+
Ultra Librarian 3D Model Ultra Librarian TCM4-25+ CAD Model

Description

The 360396-TCM4-25+ is a balun designed for RF and wireless applications.

  • Frequency Range: 500MHz to 2.5GHz
  • Maximum Insertion Loss: 3dB
  • Minimum Return Loss: 6.09dB
  • Mounting Type: Surface Mountable
  • Package: 6-SMD, flat leads
  • Manufacturer: Mini-Circuits
  • Product Line: RF and wireless
