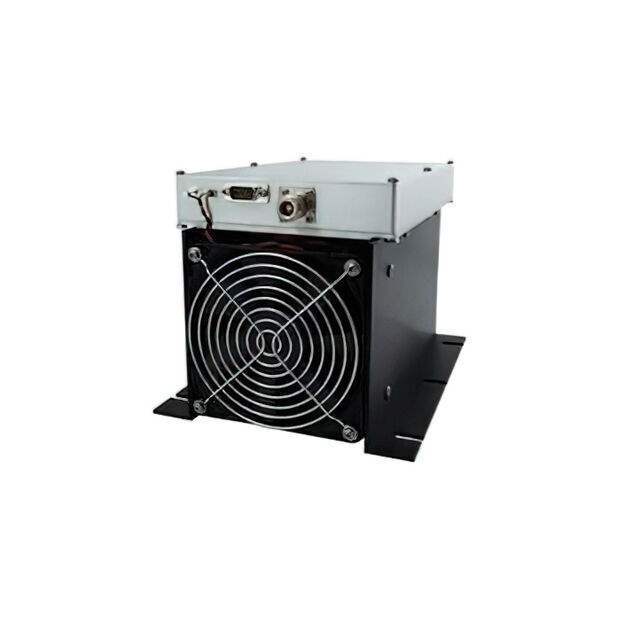

ZHL-100W-272+ Mini-Circuits
Same model may have multiple batches, images only for reference.

ZHL-100W-272+

Part No ZHL-100W-272+
Manufacturer Mini-Circuits
Catalog RF Amplifiers
Description HPA, 700 - 2700 MHZ, 50 OHM
Datasheet
ZHL-100W-272+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The ZHL-100W-272+ is a high power amplifier module supply which can be used for a wide variety of laboratory testing applications. This rugged amplifier is capable of amplifying signals up to 100W output power over its entire operating frequency range of 700 – 2700 MHz. Built-in safety features include over-temperature protection. The amplifier’s output stage is further protected in the event of a fault condition, allowing high power operation for up to 5 minutes into an OPEN or SHORT load (refer to the maximum input power specifications), preventing amplifier damage and providing excellent reliability.
