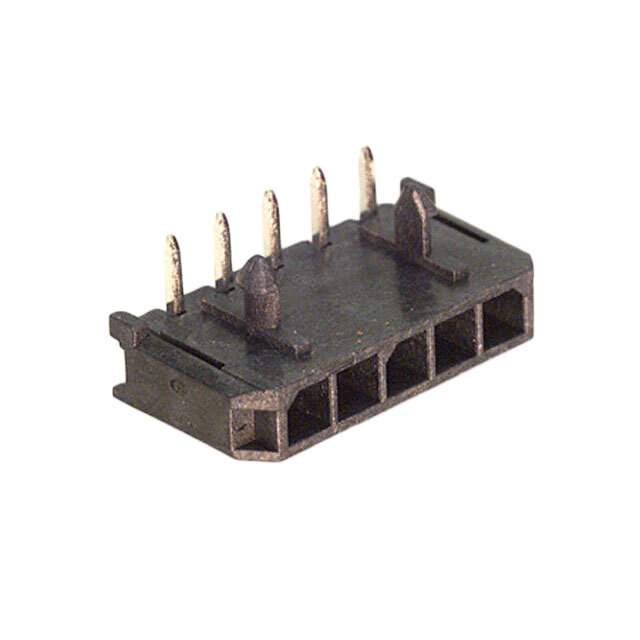

0436500500 Real Image1 0436500500 Real Image2
Same model may have multiple batches, images only for reference.
0436500500 Real Image1 0436500500 Real Image2
0436500500 Real Image1 0436500500 Real Image2
Same model may have multiple batches, images only for reference.

0436500500

Part No 0436500500
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 5POS 3MM / Connector Header Through Hole, Right Angle 5 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Micro-Fit 3.0 43650
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 5
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length -
Insulation Height 0.172" (4.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043650
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 2,023 pcs
Win Source Part Number 1380375-0436500500
Ultra Librarian 3D Model Ultra Librarian 0436500500 CAD Model

Description

The Micro-Fit 3.0 43650 series is a versatile range of connectors designed for various electronic applications. This particular connector, with a part number of 1380375-0436500500, is a male pin header with 5 positions.

  • Series: Micro-Fit 3.0 43650
  • Connector Type: Header, Male Pins
  • Positions: 5
  • Feature: Board Lock
  • Termination: Solder
  • Contact Material: Brass
  • Pitch: 0.118 inches (3.00mm)
  • Contact Finish: Tin
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Applications: General Purpose, Medical, Military, Telecommunications
  • Packaging: Tray
  • Standard Package Quantity: 2,023 pieces
  • Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Mounting Type: Through Hole, Right Angle
