Same model may have multiple batches, images only for reference.

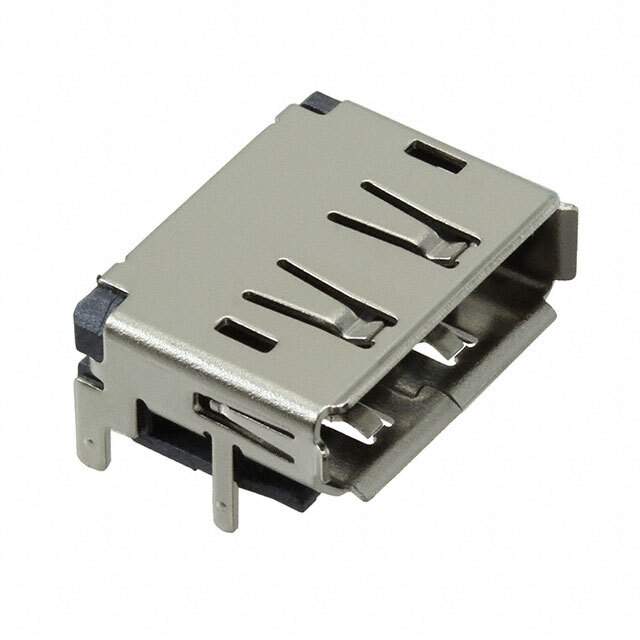

1050200001 Real Image
Same model may have multiple batches, images only for reference.

1050200001

Part No 1050200001
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description 0.50mm (.020") Pitch DisplayPort Male Receptacle, Right Angle, Through Hole, DIP Type | CONN RCPT DISPLAYPORT 20POS R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Status Obsolete
Connector Type DisplayPort
Number of Contacts 20
Gender Receptacle
Mounting Style Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Temperature Range - Operating -20°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.5A
Voltage - Rated 40VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120996-1050200001
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1050200001 CAD Model

Description

The 1120996-1050200001 is a DisplayPort connector manufactured by Molex. It is currently obsolete and has limited supply and demand.

  • Status: obsolete
  • Supply and Demand: limited
  • Shielded: Yes
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 40VAC
  • Current Rating: 0.5A
  • Packaging: reel
  • Mounting Style: through hole, right angle
  • Contacts: 20
  • Gender Type: receptacle
  • Material: steel, stainless shell/shielding material
  • Mounting Feature: horizontal
  • Mating Cycle: 10000
  • Color: black
