Same model may have multiple batches, images only for reference.

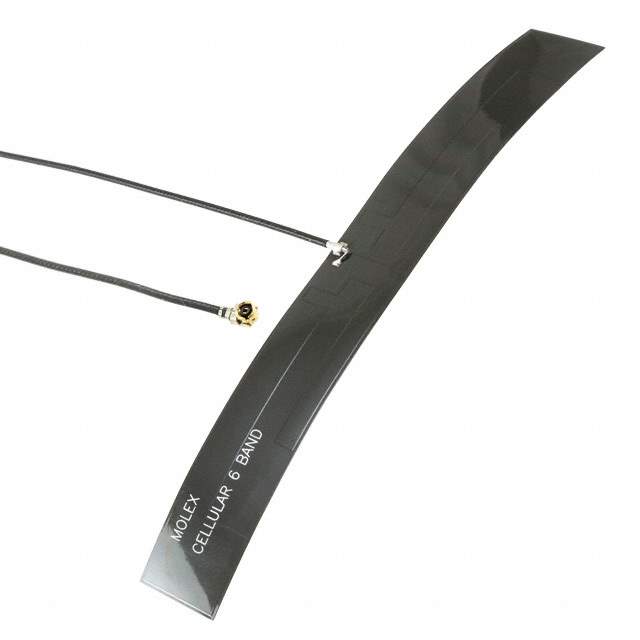

1052630001 Real Image
Same model may have multiple batches, images only for reference.

1052630001

Part No 1052630001
Manufacturer Molex, LLC
Catalog RF Antennas
Description RF ANT 850/900MHZ FLAT 100MM
Datasheet
1052630001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 16 Weeks
Features 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz GSM, LTE, UMTS Flat Patch RF Antenna 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz 2dBi, 2.2dBi, 2.3dBi, 3.1dBi U.FL (UMCC), IPEX MHF1 Adhesive
Manufacturer Molex, LLC
Series 105263
Package Tray
Mounting Adhesive
Family Name 105263
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Part Number WM9405, 105263-0001
Quantity per package 416
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905083-1052630001
Ultra Librarian 3D Model Ultra Librarian 1052630001 CAD Model

Description

The Molex LLC 905083-1052630001 RF antenna is a high-quality solution for GSM, LTE, and UMTS applications.

  • Design: flat patch
  • Frequency Range: 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, and 2.5GHz ~ 2.69GHz
  • Gain: 2dBi, 2.2dBi, 2.3dBi, and 3.1dBi
  • Mount: U.FL (UMCC), IPEX MHF1 adhesive mount
  • Family Name: 105263
  • Popularity: high
  • Supply and Demand: balance
  • Quantity per package: 416
  • Estimated Production Lead Time: 16 weeks
  • REACH: unaffected
  • HTSUS: 8529.10.9100
  • Also known as: WM9405 and 105263-0001
