Same model may have multiple batches, images only for reference.

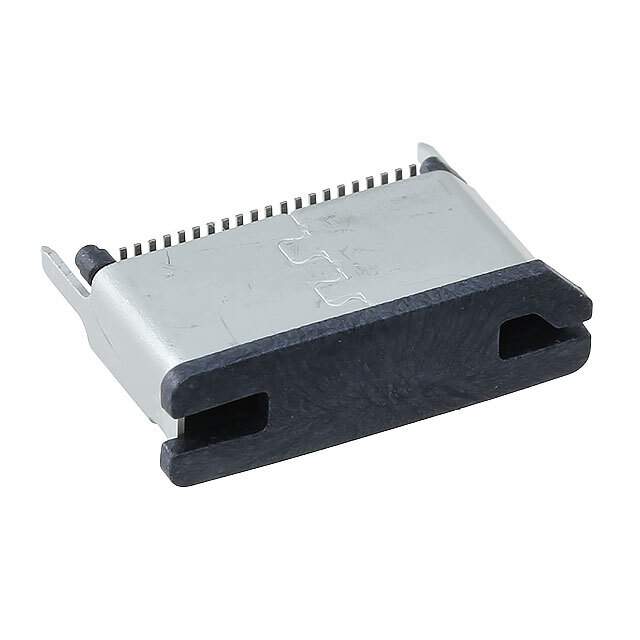

171983-2042 Real Image
Same model may have multiple batches, images only for reference.

171983-2042

Part No 171983-2042
Manufacturer Molex, LLC
Catalog Circular Connectors
Description Conn Nano-Pitch I/O RCP 42 POS 0.5mm Solder ST SMD 42 Terminal Nano-Pitch I/O 1 Port T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle
Contact Plating Gold
Country of Origin US
Gender Receptacle
Mount Surface Mount
Number of Circuits 42
Number of Pins 42
Number of Positions 42
Number of Rows 2
Orientation Vertical
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination Solder
Win Source Part Number 1034949-171983-2042
Categories Circular Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 171983-2042 CAD Model

Description

This Molex LLC circular connector is a 42 position, 2 row receptacle with a solder termination and a vertical orientation.

  • Positions: 42
  • Rows: 2
  • Termination: Solder
  • Orientation: Vertical
  • Mounting: Surface Mount
  • Plating: Tin
  • Category: Circular Connectors
  • RoHS Compliant: Yes
  • Cross-Reference: MBG30R11, MBG30R1171983-2042, 1719832042, and 1719832042
  • Manufactured in: US
  • Schedule B: 8536695050
