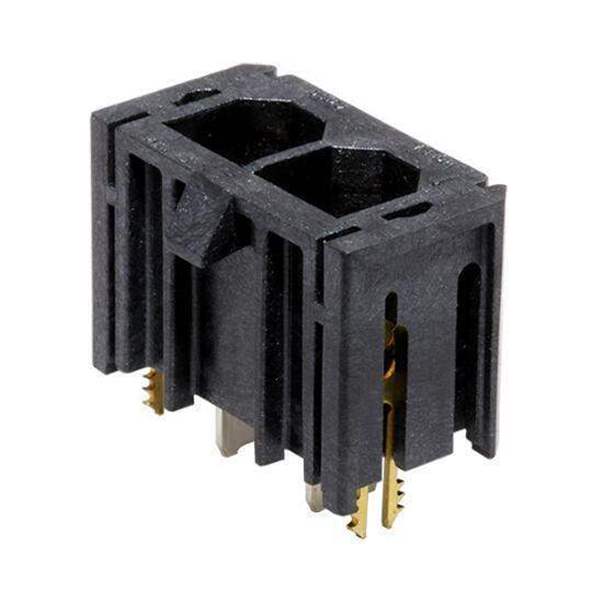

1720420206Molex
Same model may have multiple batches, images only for reference.

1720420206

Part No 1720420206
Manufacturer Molex, LLC
Catalog Blade Type Power Connectors - Accessories
Description CONN HDR 2POS 7.50MM PCB SLDR
Datasheet
1720420206 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Blade Type Power Connectors Blade Type Power Connector Assemblies
Series Super Sabre 172042
Package Tray
Product Status Active
Connector Type Header, Male Blades
Number of Positions 2
Pitch 0.295" (7.50mm)
Mounting Type Through Hole
Termination Solder
Features Board Lock, Finger-Proof
Win Source Part Number WS1206307-1720420206
Ultra Librarian 3D Model Ultra Librarian 1720420206 CAD Model

Description

Delivering 34.0A per blade and withstanding up to +125°C operating temperatures, Super Sabre Power Connectors use proven technology for long-term performance and reliability in virtually every industry
