Same model may have multiple batches, images only for reference.

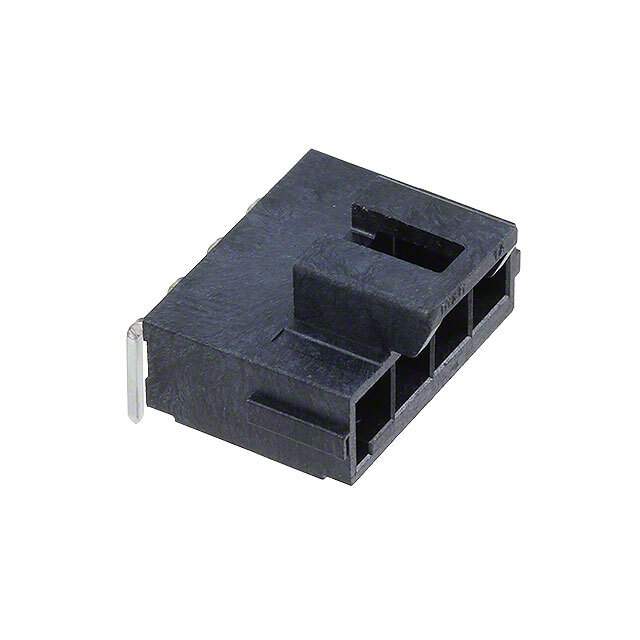

1723101304 Real Image
Same model may have multiple batches, images only for reference.

1723101304

Part No 1723101304
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Ultra-Fit Right Angle Header 3.50mm Pitch Single Row 4 Circuits 0.76
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Plating Gold
Country of Origin MX
Fastening Type Latch
Mount Through Hole
Number of Circuits 4
Number of Positions 4
Number of Rows 1
Orientation Right Angle
Pitch 3.5052 mm
Plating Tin
RoHS Compliant
Schedule B 8536694040
Termination Solder
Win Source Part Number 1209080-1723101304
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1723101304 CAD Model

Description

The 1209080-1723101304 from Molex LLC is a black colored male pin connector with a right angle orientation.

  • Pitch: 3.5052 mm
  • Positions/Circuits: 4
  • Fastening Type: Latch
  • Termination: Solder
  • Contact Plating: Gold
  • Plating: Tin
  • Mounting: Through-hole
  • RoHS: Compliant
  • Category: Circular Connectors - Housings
  • Alternative Part Number: 172310-1304
  • Supply and Demand Status: Limited
  • Manufactured in: Mexico
  • Suitable for: Various electronic applications.
