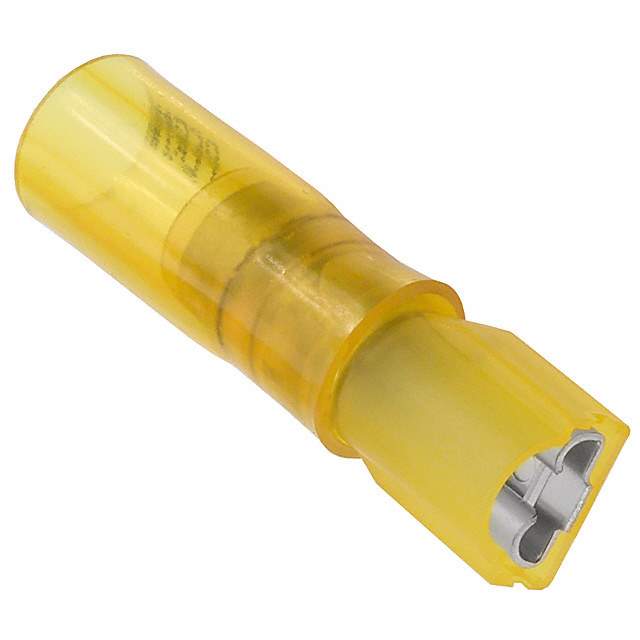

19164-0076 Real Image
Same model may have multiple batches, images only for reference.

19164-0076

Part No 19164-0076
Manufacturer Molex, LLC
Catalog Terminals
Description Perma-Seal Female Quick Disconnect Receptacle for 10-12 AWG Wire, Tab Size 6.35 x 0.81mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Copper
Body Plating Tin
Color Yellow
Contact Material Brass
Contact Plating Tin
Country of Origin US
ELV Compliant
Gender Female
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Insulation Insulated
Insulation Material Nylon
Lead Free Yes
Material Brass
Maximum Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Sealed
Orientation Straight
Packaging Bulk
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Terminal Material Brass
Termination Crimp
Voltage Rating 600 V
Voltage Rating (DC) 600 V
Wire/Cable Gauge 12 AWG
Wire Gauge (Max) 10 AWG
Wire Gauge (Min) 12 AWG
Win Source Part Number 973929-19164-0076
Categories Terminals
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 19164-0076 CAD Model

Description

This yellow-colored crimp terminal is a female connector manufactured by Molex, LLC.

  • Color: Yellow
  • Gender: Female
  • Contact Material: Brass
  • Material: Copper
  • Contact Plating: Tin
  • Insulation Material: Nylon
  • Body Material: Copper
  • Insulation: Insulated
  • Voltage Rating: 600 V
  • Feature: Low Halogen
  • Compliance: RoHS
  • Wire/Cable Gauge: 12 AWG
  • Wire Gauge (min): 12 AWG
  • Application: Terminals
  • Seal: Sealed
  • Maximum Operating Temperature: 105 °C
  • Feature: Lead-Free
  • Supply and Demand: Shortage
