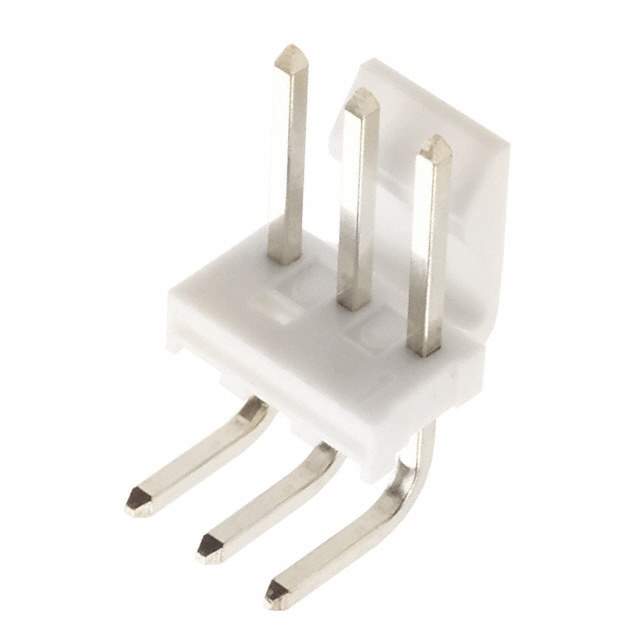

26605030 Real Image
Same model may have multiple batches, images only for reference.

26605030

Part No 26605030
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 3POS .156 R/A TIN
Datasheet
26605030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series KK 41792
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.450" (11.43mm)
Contact Length - Post 0.156" (3.96mm)
Insulation Height 0.394" (10.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60μin (1.52μm)
Contact Finish - Post Tin
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 60μin (1.52μm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Win Source Part Number 762027-26605030
Popularity Medium
Supply and Demand Status Limited
Family Name 41792
Introduction Date January 01, 2000
Country of Origin Mexico
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 26605030 CAD Model

Description

The Molex 762027-26605030 is a limited supply electronic component manufactured by Molex, LLC.

  • RoHS Compliant: Yes
  • Series: MicroClasp 51353
  • Mounting Style: Through Hole, Right Angle
  • Pitch: 0.079" (2.00mm)
  • Positions: 10 (2 rows)
  • Connector Type: Header
  • Contact Type: Female Socket
  • Latch Lock: Yes
  • Insulation Material: White (Halogen-Free)
  • Estimated EOL Date: 2028
  • Popularity: Medium
