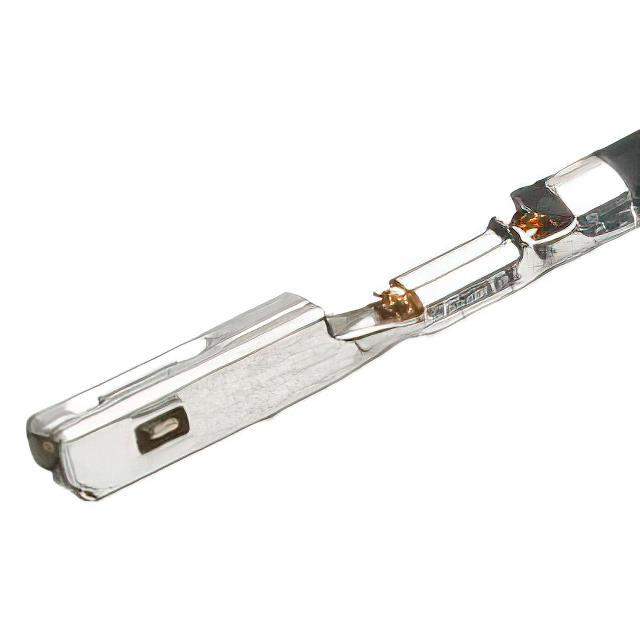

33012-3002 Real Image
Same model may have multiple batches, images only for reference.

33012-3002

Part No 33012-3002
Manufacturer Molex, LLC
Catalog Terminals
Description MX150™ Female Terminal Sealed; Tin Plating; 18-20 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, Crimp, Power, Rectangular
Contact Material Copper, Tin
Contact Plating Tin
Country of Origin US
Current Rating 22 A
Depth 3.1 mm
Gender Female
Halogen Free Low Halogen
Length 20.45 mm
Max Current Rating 22 A
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Cable
Number of Contacts 1
Orientation Straight
Packaging Cut Tape
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Shielding Unshielded
Termination Crimp
Voltage Rating 14 V
Voltage Rating (DC) 250 V
Wire/Cable Gauge 20 AWG
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 18 AWG
Working Voltage 250 V
Win Source Part Number 1159789-33012-3002
Categories Terminals
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 33012-3002 CAD Model

Description

The Molex 1159789-33012-3002 electronic component is a medium-popularity part that has a compliance to RoHS standards.

  • Connector Type: Crimp, Power, Rectangular
  • Termination: Crimp
  • Voltage Rating: 14 V
  • Current Rating: 22 A
  • Contacts: 1
  • Gender: Female
  • Length: 20.45 mm
  • Shielding: Unshielded
  • Orientation: Straight
  • Contact Plating: Tin
