Same model may have multiple batches, images only for reference.

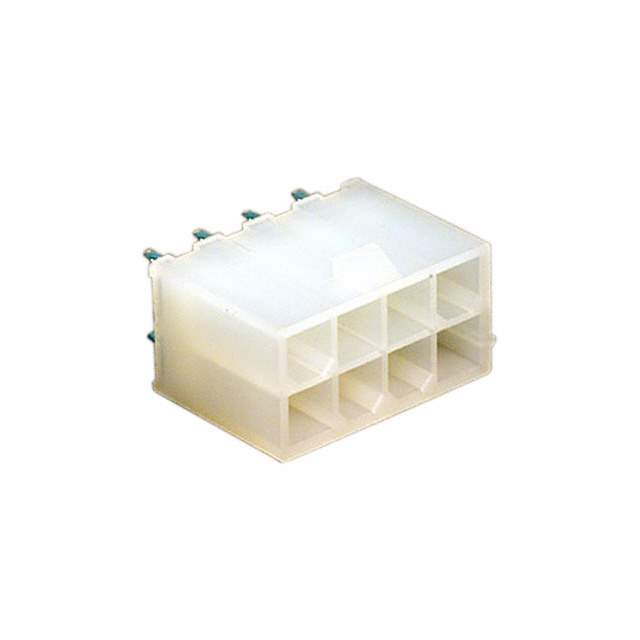

39-28-8080 Real Image
Same model may have multiple batches, images only for reference.

39-28-8080

Part No 39-28-8080
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Power HDR 8 POS 4.14mm Solder RA Thru-Hole 8 Terminal 1 Port Automotive Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Contact Gender Male
Contact Material Brass
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 8 A
Depth 11 mm
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 12.8 mm
Housing Color Natural
Housing Material Nylon
Insulation Resistance 1 GΩ
Lead Free Yes
Lead Pitch 4.2 mm
Length 18.4 mm
Material Nylon
Max Current Rating 7 A
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 600 V
Max Voltage Rating (DC) 600.6 kV
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 8
Number of Contacts 8
Number of Pins 8
Number of Poles 8
Number of Positions 8
Number of Rows 2
Orientation Vertical
Packaging Bulk
Pitch 4.2 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Row Spacing 4.2 mm
Schedule B 8536694040, 8536694040
Shape Straight
Termination Solder
Voltage Rating 600 V
Voltage Rating (AC) 600 V
Voltage Rating (DC) 600 V
Width 11 mm
Win Source Part Number 1041536-39-28-8080
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 39-28-8080 CAD Model

Description

The Molex, LLC 1041536-39-28-8080 circular connector housing is a high-quality component that is designed to provide reliable performance in a wide range of applications.

  • Positions: 8
  • Pitch: 4.2 mm
  • Voltage Rating: 600 V
  • Current Rating: 8 A
  • Contact Plating: Tin
  • Mounting Style: Through-hole
  • RoHS Compliance: Yes
  • Features: Reliable and High-Quality
