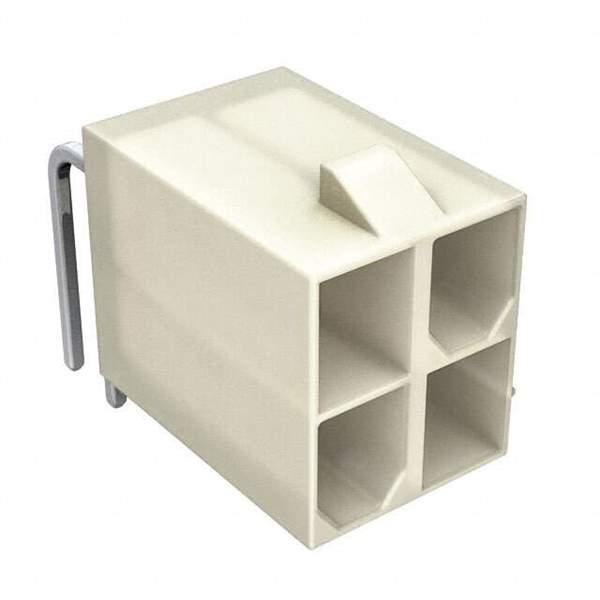

39301040 Real Image
Same model may have multiple batches, images only for reference.

39301040

Part No 39301040
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Mini-Fit Jr 5569
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.378" (9.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 003930
Other Names 0039301040-P,5569-04A2,39-30-1040-P,0039-30-1040-P,WM1352,WM1352R,39-30-1040,39301040-P,0039-30-1040,39301040
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293219-39301040
Ultra Librarian 3D Model Ultra Librarian 39301040 CAD Model

Description

The Mini-Fit Jr 5569 is a series of rectangular connectors that are used for board-to-cable/wire connections.

  • Series: Mini-Fit Jr 5569
  • Connection Type: Board-to-Cable/Wire
  • Contact Type: Male Pin Header
  • Positions Loaded: Four
  • Mounting: Printed Circuit Board
  • Feature: Locking Ramp
  • Material: Brass
  • Finish: Tin
  • Pitch: 0.165" (4.20mm)
  • Shrouding: Shrouded-4 wall
