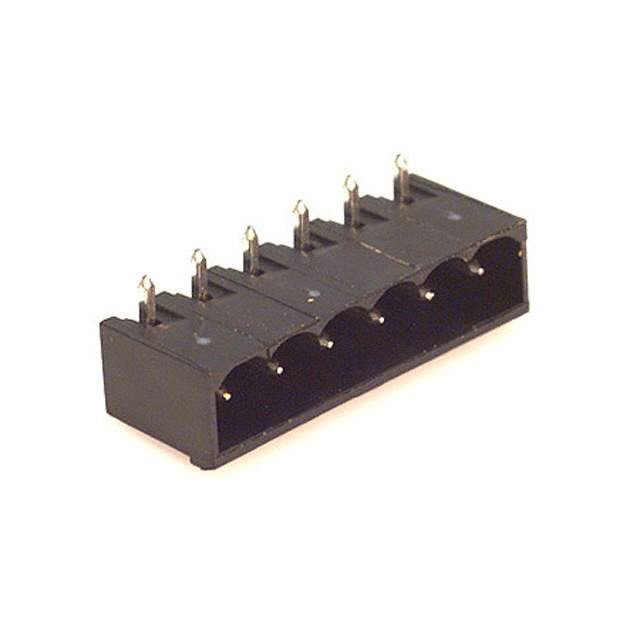

39860-0706 Real Image
Same model may have multiple batches, images only for reference.

39860-0706

Part No 39860-0706
Manufacturer Molex, LLC
Catalog Headers, Plugs and Sockets
Description Conn Shrouded Header (4 Sides) HDR 6 POS 5.08mm Solder RA Thru-Hole Eurostyle™ / TERM BLOCK HDR 6POS 90DEG 5.08MM
Datasheet
39860-0706 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Series Eurostyle 39860
Packaging Bulk
Part Status Obsolete(EOL)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Positions Per Level 6
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Style Through Hole
Current - UL 15A
Voltage - UL 300V
Color Black
Operating Temperature Range 110°C
Contact Mating Finish Tin
Contact Material Brass
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.130" (3.30mm)
Insulation Height 0.330" (8.38mm)
Win Source Part Number 785087-39860-0706
Popularity Medium
Supply and Demand Status Balance
Family Name 39860
Introduction Date June 15, 2010
ECCN EAR99
Country of Origin Mexico, Singapore, United States of America
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 39860-0706 CAD Model

Description

The Molex 785087-39860-0706 is a Eurostyle 39860 series header connector.

  • Connector Type: Header
  • Gender: Male Pins
  • Shrouding: Shrouded (on all 4 sides)
  • Positions per Level: 6
  • Levels: 1
  • Pitch: 0.200 inches (5.08mm)
  • Mounting Type: Through Hole
  • Header Orientation: 90 degrees, Right Angle
  • Current Rating: 15A
  • Voltage Rating: 300V
  • Insulation Height: 0.330 inches (8.38mm)
  • Contact Tail Length: 0.130 inches (3.30mm)
  • Product Status: Obsolete (EOL)
  • Packaging: Bulk
