Same model may have multiple batches, images only for reference.

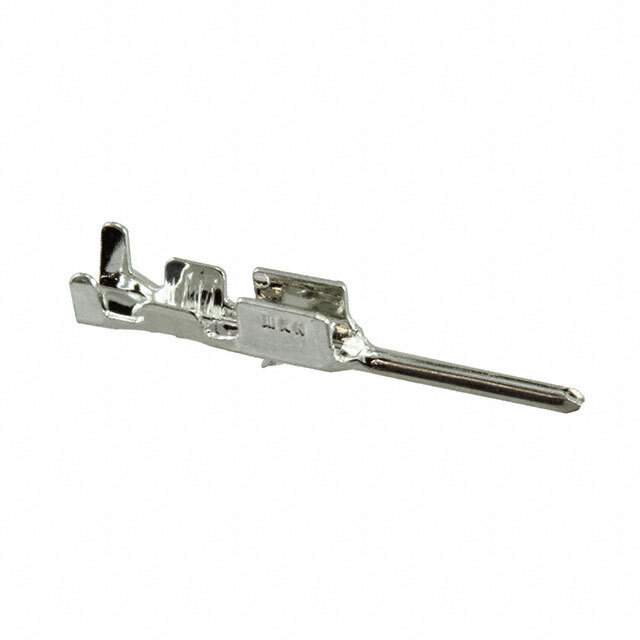

45627-0002 Real Image
Same model may have multiple batches, images only for reference.

45627-0002

Part No 45627-0002
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 2.50mm Pitch SPOX BMI Male Crimp Terminal, 22 - 24 AWG, Reel
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, PCB, Signal
Contact Gender Male
Contact Material Bronze
Contact Plating Tin
Country of Origin US
Current Rating 3 A
Depth 2.4 mm
Gender Male
Halogen Free Low Halogen
Height 2.15 mm
Mount Cable
Orientation Straight
Plating Tin
REACH SVHC No SVHC
RoHS Compliant
Shielding Unshielded
Termination Crimp
Voltage Rating 250 V
Wire/Cable Gauge 24 AWG
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 24 AWG
Win Source Part Number 1206706-45627-0002
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 45627-0002 CAD Model

Description

The Molex Electronic Component is a medium-popularity custom part product that is ideal for various applications.

  • Lead-Free: Yes
  • RoHS Compliance: Yes
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Contact Plating: Tin
  • Contact Material: Bronze
  • Maximum Wire/Cable Gauge: 22 AWG
  • Minimum Wire/Cable Gauge: 24 AWG
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -40 °C
