Same model may have multiple batches, images only for reference.

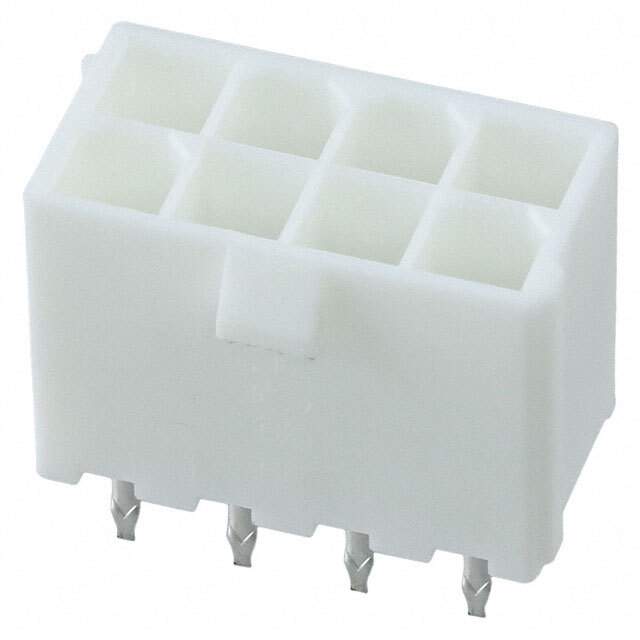

46015-0802 Real Image
Same model may have multiple batches, images only for reference.

46015-0802

Part No 46015-0802
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Wire to Board HDR 8 POS 4.2mm Solder ST Thru-Hole Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Rectangular
Contact Gender Male
Contact Material Copper
Contact Plating Tin
Country of Origin MX
Current Rating 12 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Nylon
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Number of Circuits 8
Number of Contacts 8
Number of Positions 8
Number of Rows 2
Orientation Vertical
Pitch 4.2 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Row Spacing 4.2 mm
Termination Solder
Voltage Rating 600 V
Voltage Rating (AC) 600 V
Win Source Part Number 983455-46015-0802
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 46015-0802 CAD Model

Description

The Molex 983455-46015-0802 is an 8-position natural rectangular connector with 2 rows, a pitch of 4.2 mm, and is rated for 600 V voltage and 12 A current.

  • Gender: male
  • Housing Material: nylon
  • Contact Material: copper
  • Orientation: vertical
  • Contact Plating: tin
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 105 °C
  • Glow Wire Compliant: No
