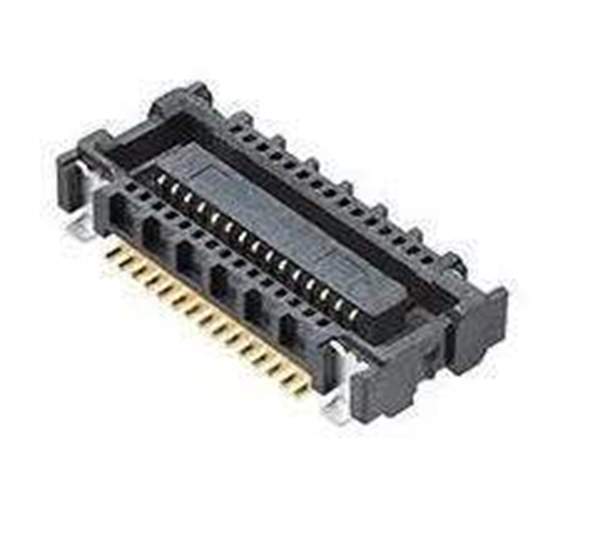

500913-0242 Molex
Same model may have multiple batches, images only for reference.

500913-0242

Part No 500913-0242
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Description Board to Board & Mezzanine Connectors 0.4 BtB Rec Hsg Assy ssy 24Ckt EmbsTp Pkg
Datasheet
500913-0242 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Category Board to Board & Mezzanine Connectors
Number of Positions 24 Position
Pitch 0.4 mm (0.016 in)
Number of Rows 2 Row
Termination Style Solder
Mounting Angle Vertical
Stack Height 1.8 mm, 2.3 mm
Current Rating 300 mA
Voltage Rating 50 V
Ultra Librarian 3D Model Ultra Librarian 500913-0242 CAD Model

Description

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, J-Bend Series, 1.80 or 2.30mm Mated Height, 4.20mm Mated Width, 24 Circuits
