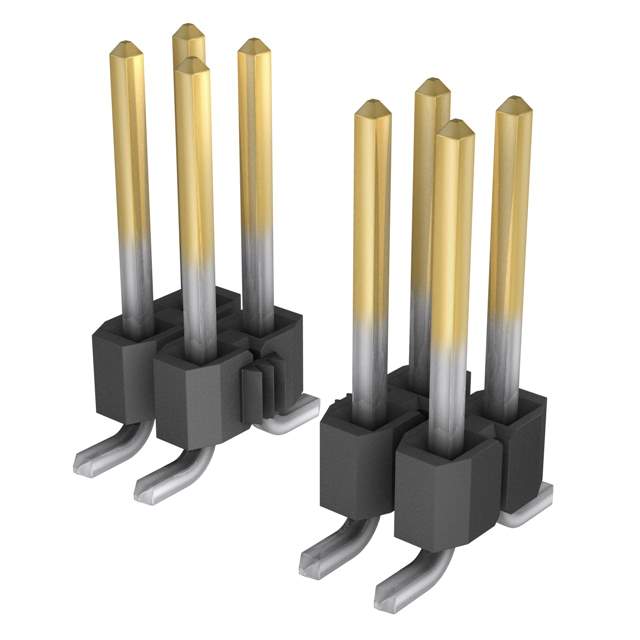

TSM-105-02-S-DV Real Image
Same model may have multiple batches, images only for reference.

TSM-105-02-S-DV

Part No TSM-105-02-S-DV
Manufacturer Samtec Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 10POS 2.54MM  /  Connector Header Surface Mount 10 position 0.100" (2.54mm)
Datasheet
TSM-105-02-S-DV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TSM
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.320" (8.13mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number TSM-105
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names TSM-105-02-S-DV-ND,SAM10801
Standard Package 45
Win Source Part Number 1101443-TSM-105-02-S-DV
Ultra Librarian 3D Model Ultra Librarian TSM-105-02-S-DV CAD Model

Description

The TSM-105-02-S-DV is a board-to-board or cable connector header with a pitch of 0.100" (2.54mm).

  • Contact Finish-Mating: gold
  • Contact Finish Thickness-Mating: 30.0µin (0.76µm)
  • Connector Type: header
  • Contact Type: male pin
  • Positions Loaded: 10
  • Rows: 2
  • Termination: solder
  • Fastening Type: push-pull
  • Voltage Rating: -
  • Current Rating: -
  • Contact Material: phosphor bronze
  • Insulation Material: liquid crystal polymer (LCP)
  • Shrouding: unshrouded
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Temperature Range: -55°C to 125°C
