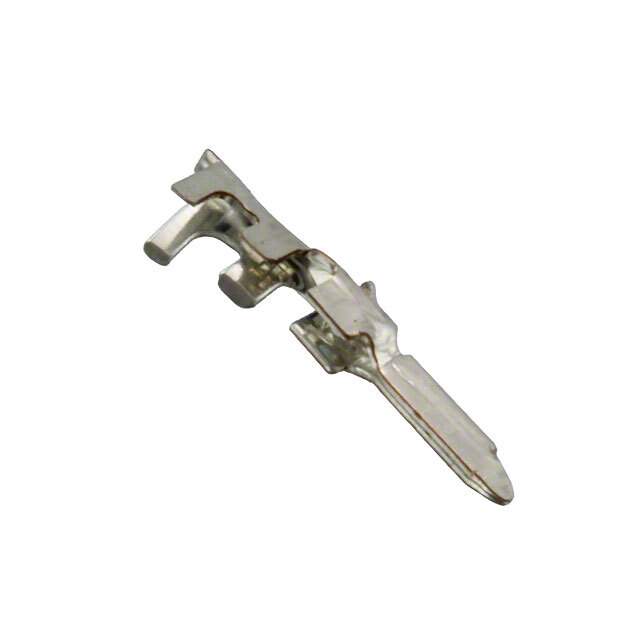

Same model may have multiple batches, images only for reference.

50125-8000

Name: 50125-8000
Brand: Molex, LLC
SKU: 1106970
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	50125-8000
Manufacturer	Molex, LLC
Catalog	Terminals
Description	1.25mm Pitch, PicoBlade Male Crimp Terminal, Tin (Sn) Plating, 26-28 AWG, Reel
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Connector Type	Connector, Crimp, PCB, Signal
Contact Material	Bronze, Tin
Contact Plating	Tin
Contact Resistance	20 mΩ
Country of Origin	MX
Current Rating	1 A
Depth	1.37 mm
Gender	Male
Halogen Free	Low Halogen
Height	1.69 mm
Insulation	Non-Insulated
Lead Free	Lead Free
Length	7.15 mm
Max Current Rating	1 A
Mount	Cable
Number of Contacts	1
Orientation	Straight
Packaging	Cut Tape (CT)
Plating	Tin
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536695050
Shielding	Unshielded
Termination	Crimp
Voltage Rating	125 V
Voltage Rating (DC)	125 V
Wire/Cable Gauge	28 AWG
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	28 AWG
Win Source Part Number	1106970-50125-8000
Categories	Terminals
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 50125-8000 CAD Model

Alternative Products

Description

The Molex, LLC 50125-8000 component is a connector type crimp PCB signal component with a termination of crimp and a contact material of bronze, tin.

Manufacturer: Molex, LLC
Connector Type: Crimp PCB Signal
Termination: Crimp
Contact Material: Bronze, Tin
Voltage Rating: 125V
Current Rating: 1A
Contact Gender: Male
Length: 7.15 mm
Shielding: Unshielded
Orientation: Straight
Contact Plating: Tin
Contact Resistance: 20 mΩ
Insulation: Non-Insulated
Height: 1.69 mm
Lead-Free: Yes
RoHS Compliant: Yes
