Same model may have multiple batches, images only for reference.

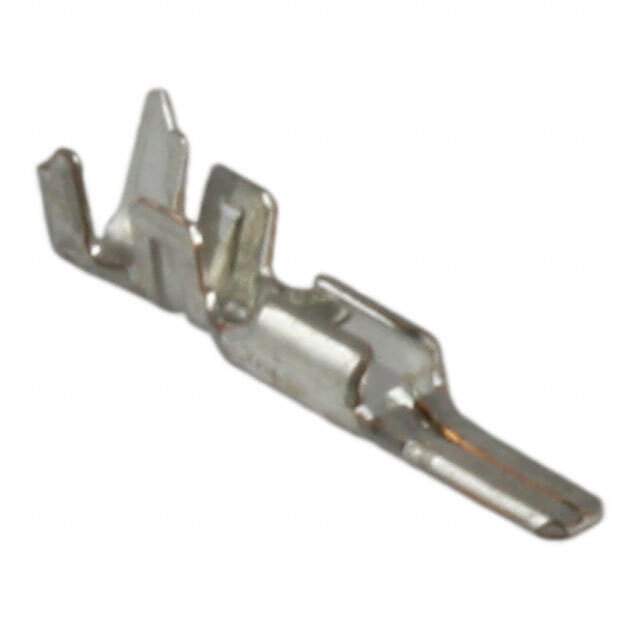

50147-8000 Real Image
Same model may have multiple batches, images only for reference.

50147-8000

Part No 50147-8000
Manufacturer Molex, LLC
Catalog Terminal Blocks
Description 1.25mm (.049") Pitch PicoBlade™ Wire-to-Wire Crimp Terminal, Male, 28-32 AWG, Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, PCB, Signal
Contact Material Bronze, Tin
Contact Plating Tin
Country of Origin MX
Depth 2.7 mm
Gender Male
Height 2.6 mm
Insulation Non-Insulated
Length 10.7 mm
Max Current Rating 4 A
Mount Cable
Orientation Straight
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050
Shielding Unshielded
Termination Crimp
Voltage Rating 125 V
Wire/Cable Gauge 22 AWG
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 22 AWG
Win Source Part Number 958756-50147-8000
Categories Terminal Blocks
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 50147-8000 CAD Model

Description

The Molex 958756-50147-8000 is a non-insulated signal PCB connector with 1 row and 1 circuit. It has a straight orientation with a crimp termination.

  • Insulation: Non-Insulated
  • Type: Signal PCB Connector
  • Rows: 1
  • Circuits: 1
  • Orientation: Straight
  • Termination: Crimp
  • Contact Material: Bronze
  • Contact Plating: Tin
  • Plating: Tin
  • Voltage Rating: 125V
  • Max Current Rating: 4A
  • Wire/Cable Gauge: 22-20 AWG
  • Depth: 2.7mm
  • Halogen-Free: Yes
  • RoHS: Compliant
  • Applications: Industrial control systems, automotive, and consumer electronics
