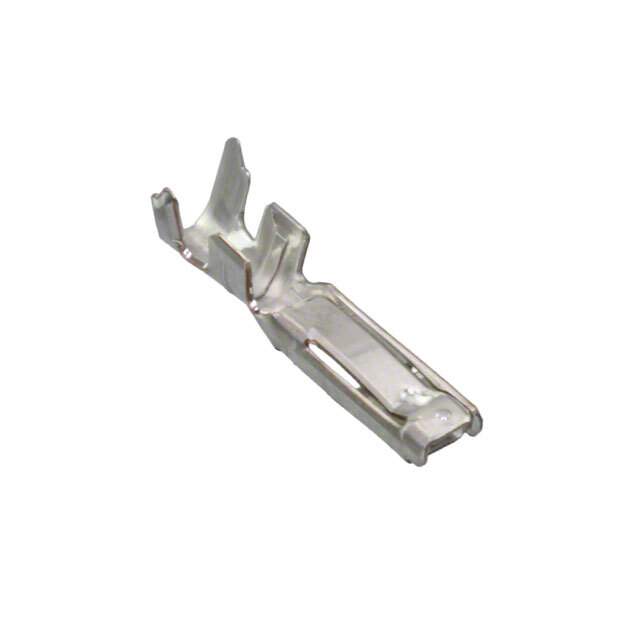

Same model may have multiple batches, images only for reference.

50148-8000

Name: 50148-8000
Brand: Molex, LLC
SKU: 1107375
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	50148-8000
Manufacturer	Molex, LLC
Catalog	Terminals
Description	Mizu-P25TM Minituare Waterproof Connector Terminal (50148) (Molex)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Connector Type	Connector, PCB, Signal
Contact Gender	Female
Contact Material	Tin
Contact Plating	Tin
Country of Origin	MX
Depth	2.7 mm
Gender	Female
Halogen Free	Low Halogen
Height	2.6 mm
Insulation	Non-Insulated
Length	9.3 mm
Material	Bronze
Max Current Rating	4 A
Mount	Cable
Number of Poles	1
Orientation	Straight
Packaging	Cut Tape
Pitch	0 m
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536695050
Shielding	Unshielded
Termination	Crimp
Voltage Rating	125 V
Wire/Cable Gauge	22 AWG
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	22 AWG
Win Source Part Number	1107375-50148-8000
Categories	Terminals
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 50148-8000 CAD Model

Alternative Products

Description

The Molex 1107375-50148-8000 connector is a PCB signal connector with a crimp termination and a female gender.

Type: PCB signal connector
Termination: Crimp
Gender: Female
Voltage Rating: 125V
Current Rating: 4A
Contact Material: Tin
Contact Plating: Tin contact plating
Shielding: Unshielded
Orientation: Straight
Length: 9.3mm
Height: 2.6mm
Depth: 2.7mm
Mounting: Cable
Wire/Cable Gauge: 22-20 AWG
Compliance: RoHS compliant and low halogen
Applications: Terminals
Popularity: Medium
