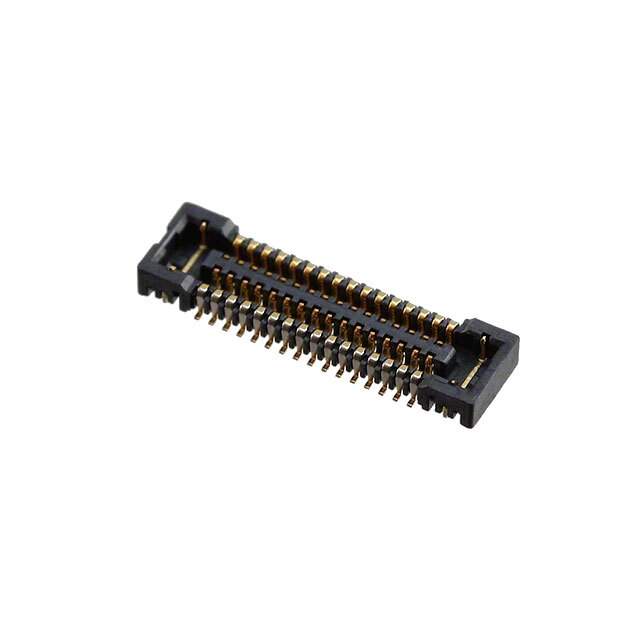

Same model may have multiple batches, images only for reference.

5024263210

Name: 5024263210
Brand: Molex, LLC
SKU: 1314550
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5024263210
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Molex
Series	SlimStack 502426
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	32
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	1mm
Height Above Board	0.039" (1.00mm)
Base Product Number	502426
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1314550-5024263210
Ultra Librarian 3D Model	Ultra Librarian 5024263210 CAD Model

Alternative Products

Description

It is a rectangular connector that has a center strip contacts receptacle and is suitable for use in various electronic devices.

Positions: 32
Pitch: 0.016 inches (0.40mm)
Contact Finish: Gold
Contact Finish Thickness: 4.00µin (0.100µm)
Packaging: Tape and Reel
Height Above Board: 0.039 inches (1.00mm)
Mounting: Surface Mount Device (SMD)
