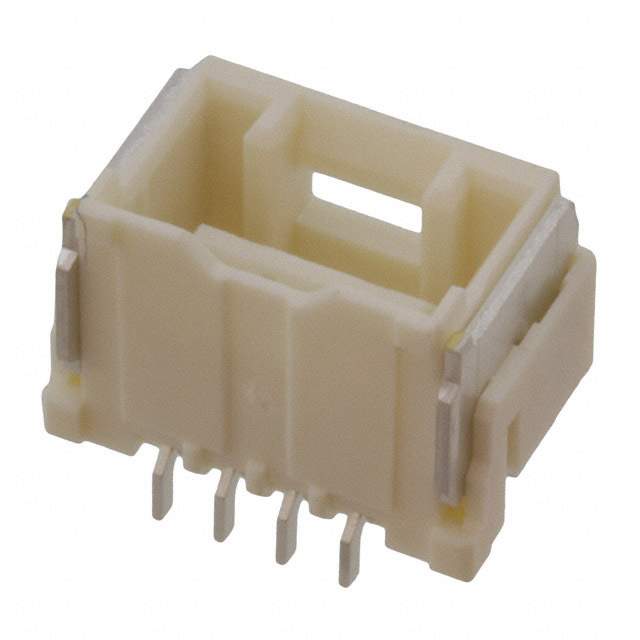

The 502585-0470 is a Micro-Fit 3.0 connector housing manufactured by Molex, LLC. It is part of the Micro-Fit 3.0 series known for its compact size and reliability in various applications requiring secure wire-to-board or wire-to-wire connections.

Applications:

• Consumer electronics
• Industrial automation
• Automotive systems
• Telecommunications equipment
• Medical devices

Features:

• Four circuits
• Micro-Fit 3.0 interface
• Positive locking mechanism
• Polarization features
• Durable housing material

Benefits:

• Provides secure and reliable electrical connections
• Prevents accidental disconnections due to vibration or other external factors
• Ensures correct mating and prevents damage to the connector
• Suitable for high-density applications due to its compact size
• Offers long-lasting performance in demanding environments

Additional Details:

The 502585-0470 housing has 4 circuits arranged in a single row configuration. It utilizes a 3.00mm pitch. It is typically manufactured from a high-temperature thermoplastic material resistant to soldering temperatures. Mating parts are from the Micro-Fit 3.0 family of headers and receptacles. This housing requires Micro-Fit 3.0 crimp terminals, which are sold separately. The housing's flammability rating is typically UL 94V-0. The operating temperature range depends on the chosen terminals and is outlined in the product specifications for the Micro-Fit 3.0 system.
