Same model may have multiple batches, images only for reference.

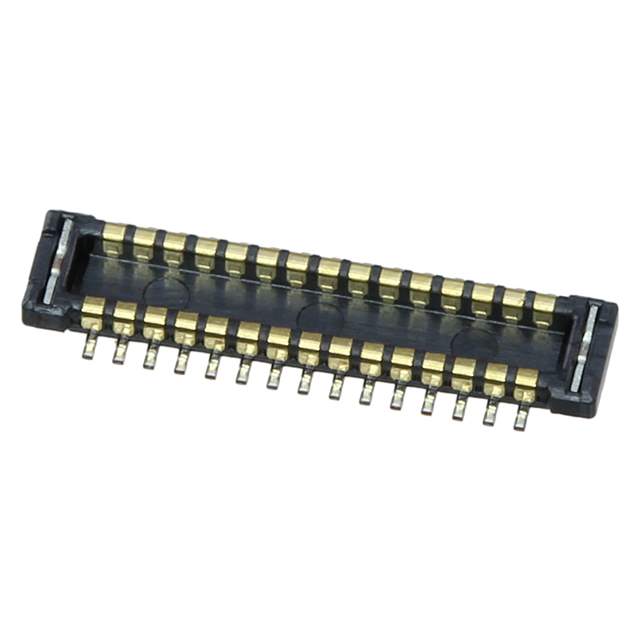

5033083010 Real Image
Same model may have multiple batches, images only for reference.

5033083010

Part No 5033083010
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG 30POS SMD GOLD / 30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex, LLC
Series SlimStack 503308
Package Tape & Reel
Product Status Obsolete
Connector Type Plug, Outer Shroud Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.7mm
Height Above Board 0.022" (0.57mm)
Base Product Number 503308
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 852871-5033083010
Ultra Librarian 3D Model Ultra Librarian 5033083010 CAD Model

Description

The SlimStack 503308 series mezzanine connector is a high-density and reliable solution for your board-to-board connections.

  • Pitch: 0.016" (0.40mm)
  • Positions: 30
  • Rows: 2
  • Mounting: Surface Mount
  • Mates With: Outer Shroud
  • Contact Finish: Gold
  • Stacking Height: 0.7mm
  • Height Above Board: 0.022" (0.57mm)
  • Package: Tape & Reel
  • Standard Quantity: 3,000 pcs
  • Solder Retention: Yes
