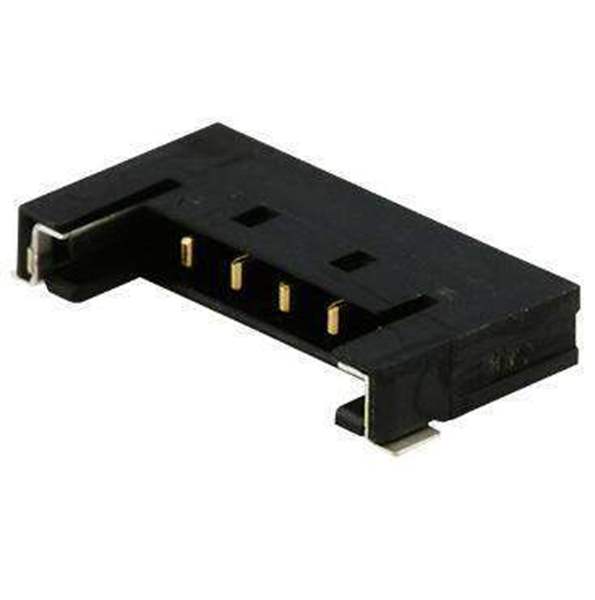

5040500791Molex
Same model may have multiple batches, images only for reference.

5040500791

Part No 5040500791
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 7POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Product Status Active
Contact Type Male Blade
Pitch - Mating 0.059" (1.50mm)
Shrouding Shrouded - 4 Wall
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.079" (2.00mm)
Win Source Part Number WS1208815-5040500791
Ultra Librarian 3D Model Ultra Librarian 5040500791 CAD Model

Description

Connector Header Surface Mount, Right Angle 7 position 0.059" (1.50mm)
