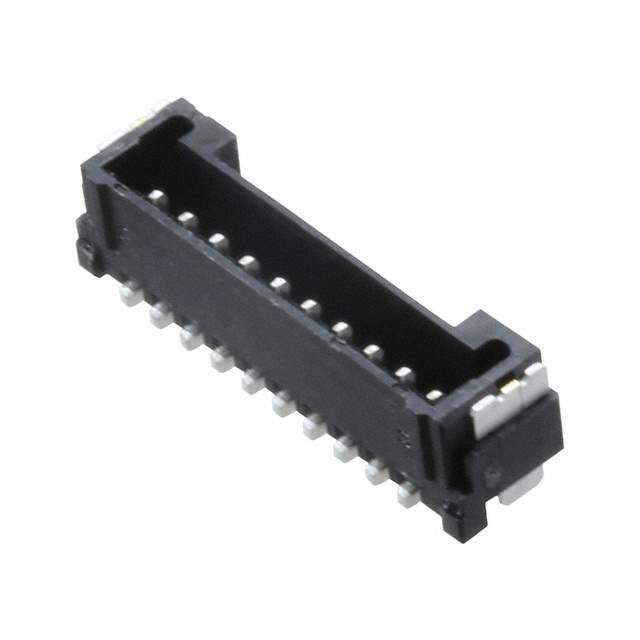

5055681071

Name: 5055681071
Brand: Molex, LLC
SKU: 1349386
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5055681071
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 1.25MM / Connector Header Surface Mount 10 position 0.049" (1.25mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	Micro-Lock PLUS 505568
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.165" (4.20mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA) , Nylon, Glass Filled
Features	Solder Retention
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	50VAC/DC
Mated Stacking Heights	7.4mm
Contact Finish Thickness - Post	39.4µin (1.00µm)
Applications	Automotive, General Purpose, Industrial
Base Product Number	505568
Standard Package	1,200
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349386-5055681071
Ultra Librarian 3D Model	Ultra Librarian 5055681071 CAD Model

Alternative Products

Description

The Micro-Lock PLUS 505568 series header is a male pin connector that comes with 10 positions.

Number of Positions: 10
Features: Solder Retention
Style: Board to Cable/Wire
Manufacturer: Molex
Standard Package: 1,200 units
Voltage Rating: 50VAC/DC
Applications: Automotive, General Purpose, Industrial
Insulation Material: Polyamide (PA), Nylon, Glass Filled
Color: Black
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Tin
HTSUS Code: 8536.69.4040
