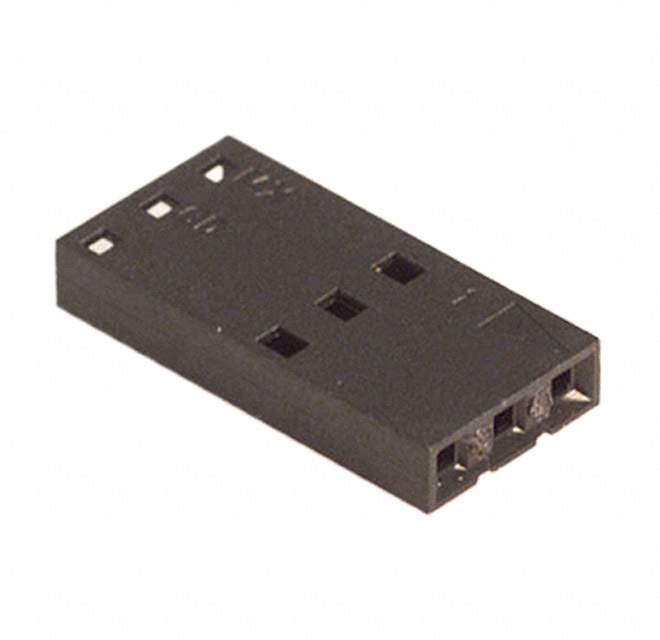

The 50579003 is a Micro-Fit 3.0 connector manufactured by Molex, LLC. As a part of the Micro-Fit 3.0 series, this connector is known for its compact size and high current carrying capabilities, making it suitable for a wide range of applications where space is limited but reliable power delivery is essential.

Applications

• Power supplies
• Industrial equipment
• Robotics
• Automotive applications
• Consumer electronics

Features

• Compact design for space savings
• High current carrying capacity
• Positive locking mechanism for secure connections
• Polarization to prevent mis-mating
• Fully isolated terminals

Benefits

• Enables efficient power delivery in compact devices
• Ensures reliable and secure connections, reducing downtime
• Simplifies assembly with intuitive mating features
• Prevents accidental damage due to mis-mating
• Enhances safety with fully isolated terminals

Additional Details

The Molex Micro-Fit 3.0 connector system features a 3.00mm pitch and is designed for both wire-to-wire and wire-to-board applications. The 50579003 typically consists of a housing and corresponding terminals. The housing is often made of durable nylon material that provides good electrical insulation and mechanical strength. The terminals are constructed from a copper alloy with tin or gold plating to ensure excellent conductivity and corrosion resistance. The positive locking mechanism provides an audible click, indicating a secure connection. The polarization feature prevents accidental mis-mating, ensuring correct alignment. The fully isolated terminals prevent accidental shorts. It’s important to consult the Molex datasheet for specific details such as the number of circuits, voltage and current ratings, wire gauge compatibility, and operating temperature range. Proper crimping tools and techniques are essential to ensure a reliable and long-lasting connection.
