Same model may have multiple batches, images only for reference.

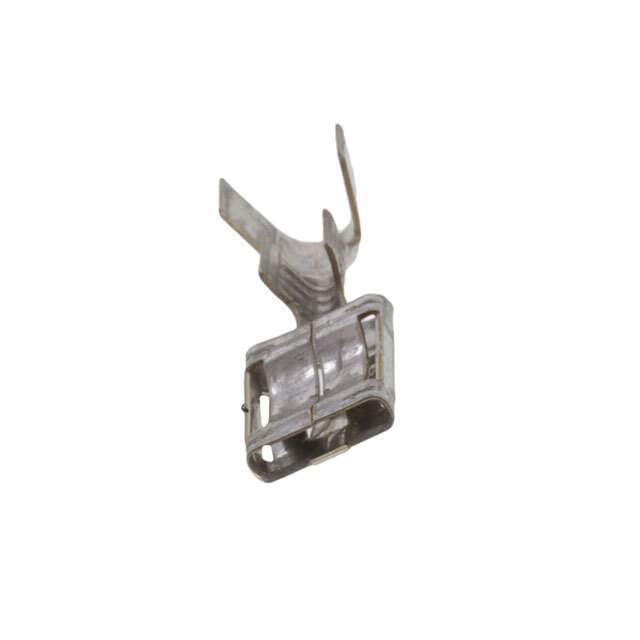

5060301 Real Image
Same model may have multiple batches, images only for reference.

5060301

Part No 5060301
Manufacturer Molex, LLC
Catalog Terminals
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr Molex
Series 2176
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Flat Blade
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.275" (6.99mm)
Length - Overall 0.630" (16.00mm)
Termination Crimp
Wire Gauge 14-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.031" (0.79mm)
Base Product Number 000506
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1314687-5060301
Ultra Librarian 3D Model Ultra Librarian 5060301 CAD Model

Description

The 5060301 is a female terminal designed for quick connect and disconnect. The device has a crimp termination and comes in a tape and reel or cut tape package.

  • Wire Gauge: 14-22 AWG
  • Material: Brass
  • Length Overall: 0.630" (16.00mm)
  • Insulation: Non-Insulated
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Tab Length: 0.275" (6.99mm)
  • Insulation Diameter: 0.031" (0.79mm)
  • Mounting Type: Free Hanging (In-Line)
  • Series: 2176
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.90.4000
  • Manufacturer: Molex
