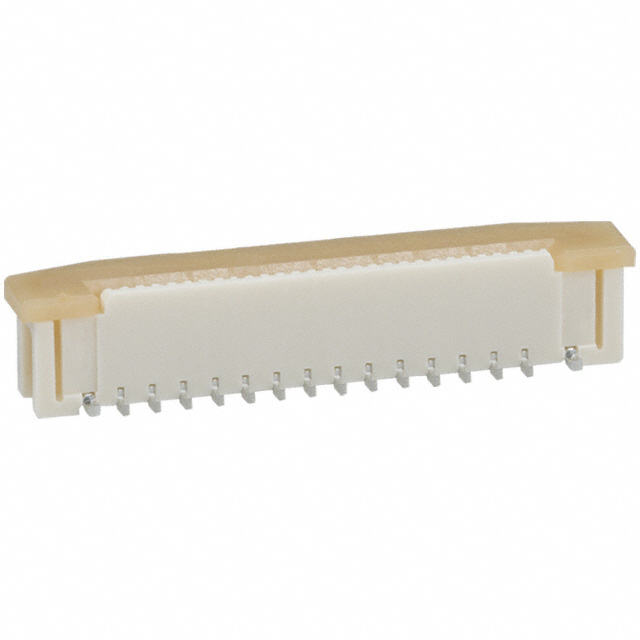

52559-3072

Name: 52559-3072
Brand: Molex, LLC
SKU: 546423
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	52559-3072
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	0.5 FPC CONN ASSY ZIF SMT ST EMBSTP PKG \| CONN FFC VERT 30POS 0.50MM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Status	Obsolete
Flat Flex Type	FFC, FPC
Mounting Style	SMD
Connector/Contact Type	Contacts, Vertical - 1 Sided
Number of Positions	30
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.154" (3.90mm)
Locking Feature	Slide Lock
Cable End Type	Straight, Tapered
Contact Material	Phosphor Bronze
Contact Finish	Tin Bismuth
Dielectric Material	Polyamide (PA46), Nylon 4/6
Actuator Material	Polyphenylene Sulfide (PPS)
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	39.4μin (1.00μm)
Mating Cycles	20
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1129111-52559-3072
Manufacturer Homepage	www.molex.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 52559-3072 CAD Model

Alternative Products

Description

The 52559-3072 is a zero insertion force (ZIF) connector for flat flex cables from Molex.

Description: Designed for use in electronic circuits that require a reliable and secure connection between two conductors.
Pitch: 0.020”
Voltage Rating: Up to 50V
Popularity: Medium-popularity
Supply and Demand Status: Limited
Status: Obsolete
Manufacturer Pack Quantity: 1
MSL Level: 1 (Unlimited)
