Same model may have multiple batches, images only for reference.

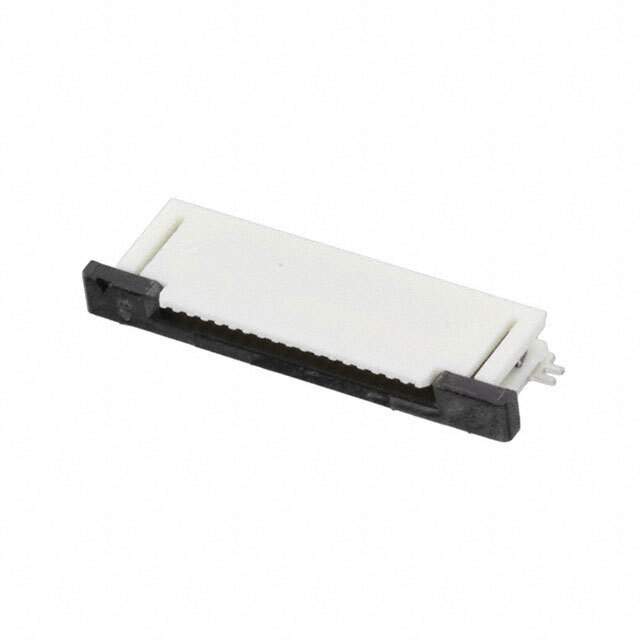

527451897 Real Image
Same model may have multiple batches, images only for reference.

527451897

Part No 527451897
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 18 Position Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
527451897 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors,Interconnects
Family FFC, FPC (Flat Flexible) Connectors
Manufacturer Molex, LLC
Series 52745
Packaging Reel(TR)
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 18
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA46), Nylon 4/6, Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -20°C ~ 85°C
Current Rating 0.5A
Win Source Part Number 137027-0527451897
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 527451897 CAD Model

Description

Product Overview

The 527451897 component is engineered for high efficiency and reliability, making it an ideal choice for a wide range of electronic projects.

Features and Benefits

  • Energy Efficient: Optimized for low power usage without sacrificing performance.
  • Reliable Construction: Offers stable operation over long periods.
  • Wide Range of Applications: Can be used in diverse projects.

Applications

  • Solar Energy Systems
  • Smart Wearables
  • Telecommunications
  • Robotics

Additional Details:
Operating Voltage: 2V - 12V
Temperature Range: -20°C to 70°C
