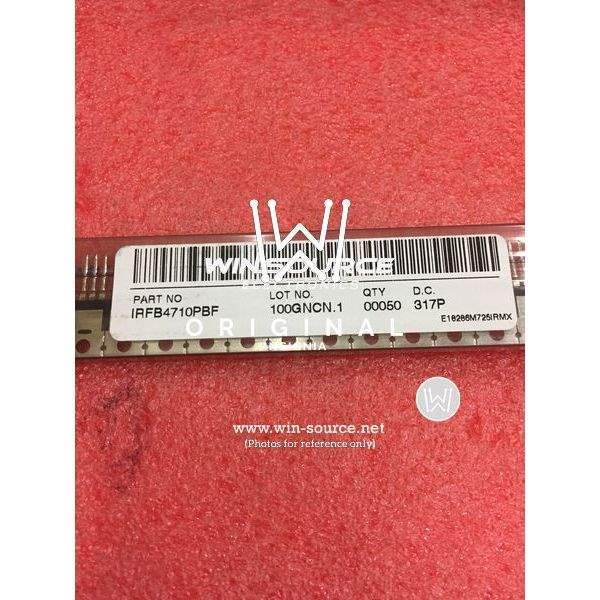

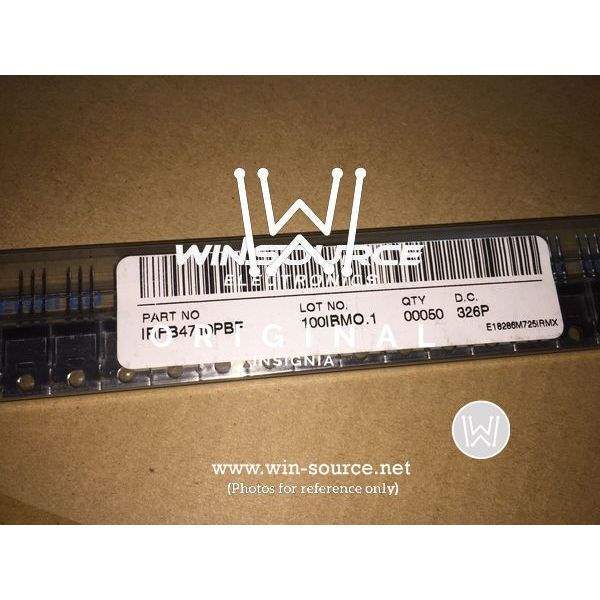

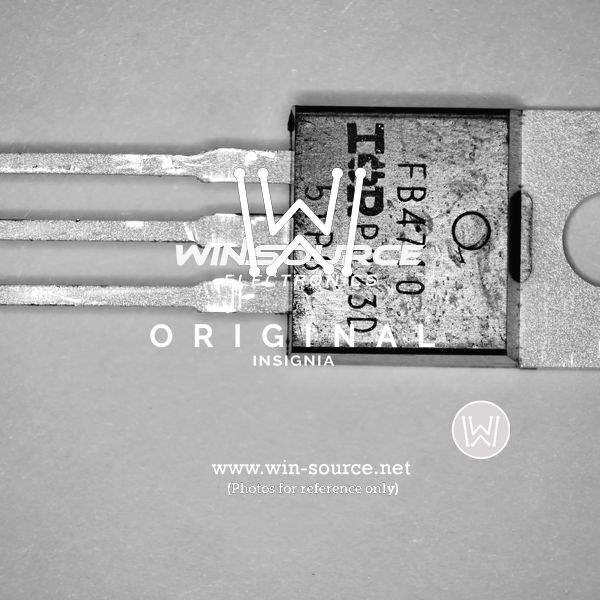

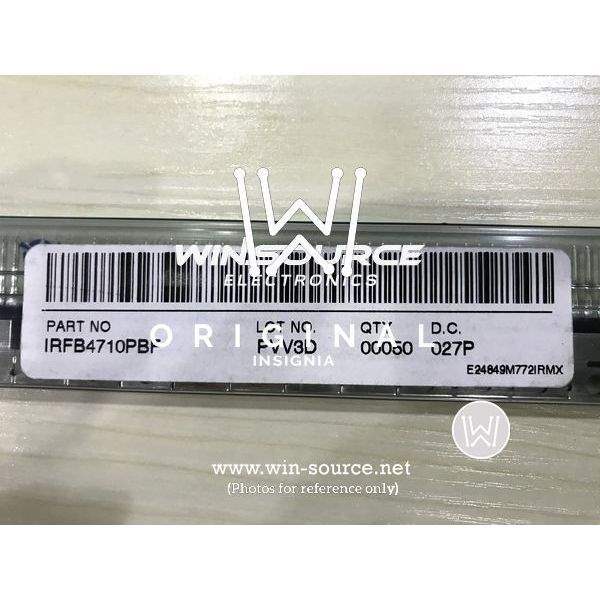

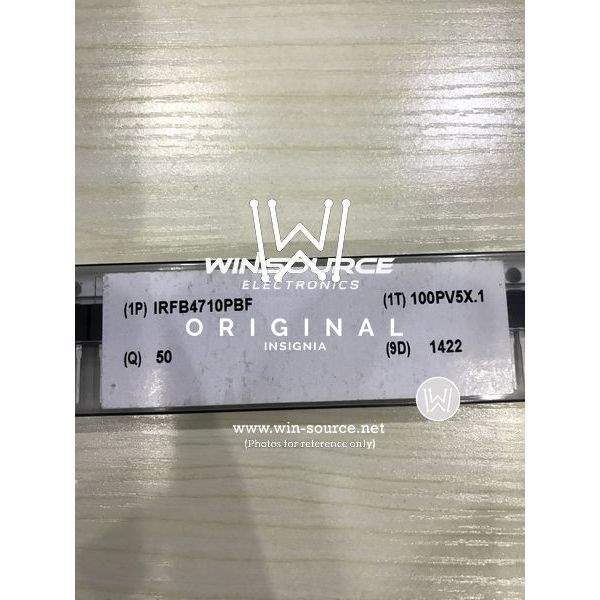

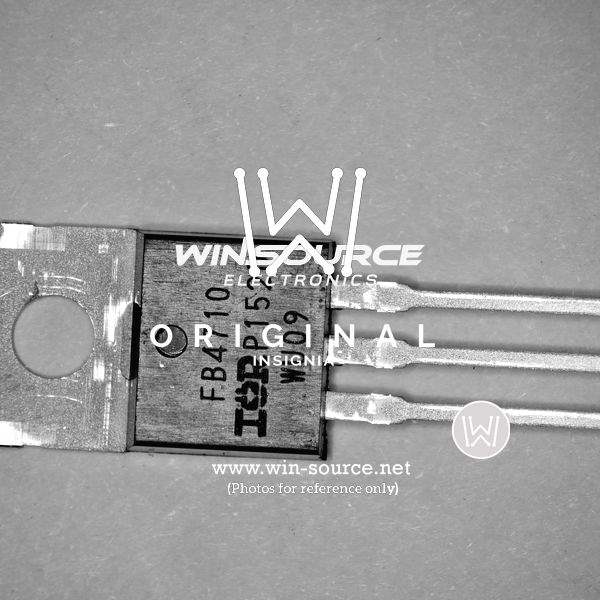

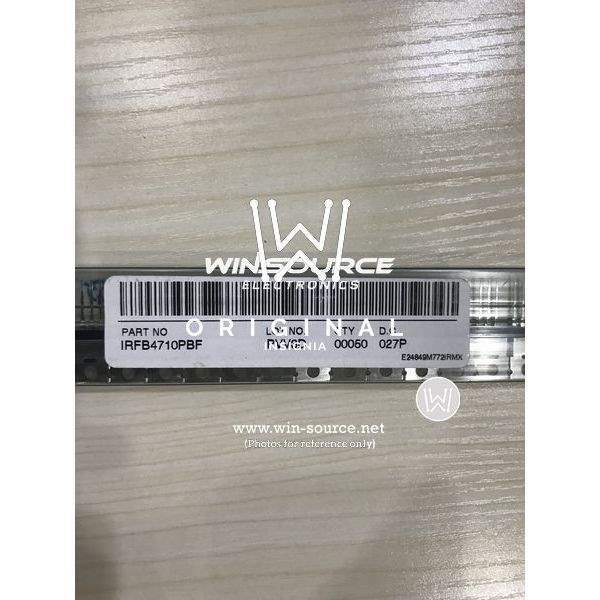

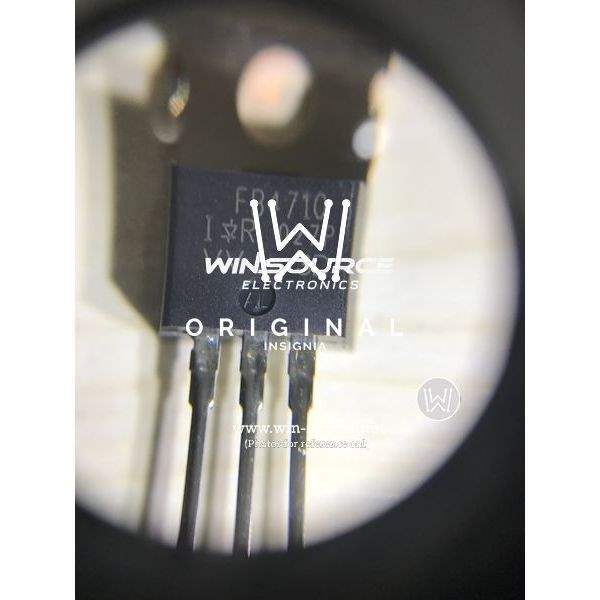

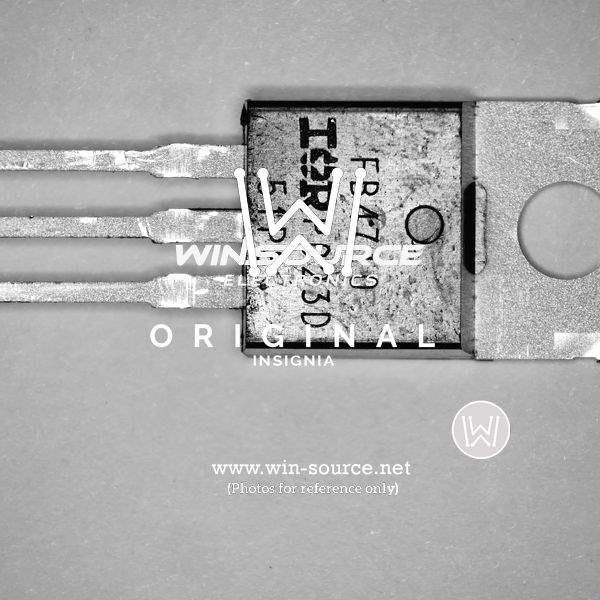

IRFB4710PBF Infineon Technologies IRFB4710PBF Real Image IRFB4710PBF Real Image1 IRFB4710PBF Real Image2 IRFB4710PBF Real Image3 IRFB4710PBF Real Image4 IRFB4710PBF Real Image5 IRFB4710PBF Real Image6 IRFB4710PBF real image 2 IRFB4710PBF real image 3 IRFB4710PBF label picture IRFB4710PBF label picture 2 IRFB4710PBF label picture 3 IRFB4710PBF label picture 4 IRFB4710PBF label picture 5
Same model may have multiple batches, images only for reference.
IRFB4710PBF Infineon Technologies IRFB4710PBF Real Image IRFB4710PBF Real Image1 IRFB4710PBF Real Image2 IRFB4710PBF Real Image3 IRFB4710PBF Real Image4 IRFB4710PBF Real Image5 IRFB4710PBF Real Image6 IRFB4710PBF real image 2 IRFB4710PBF real image 3 IRFB4710PBF label picture IRFB4710PBF label picture 2 IRFB4710PBF label picture 3 IRFB4710PBF label picture 4 IRFB4710PBF label picture 5
IRFB4710PBF Infineon Technologies IRFB4710PBF Real Image IRFB4710PBF Real Image1 IRFB4710PBF Real Image2 IRFB4710PBF Real Image3 IRFB4710PBF Real Image4 IRFB4710PBF Real Image5 IRFB4710PBF Real Image6 IRFB4710PBF real image 2 IRFB4710PBF real image 3 IRFB4710PBF label picture IRFB4710PBF label picture 2 IRFB4710PBF label picture 3 IRFB4710PBF label picture 4 IRFB4710PBF label picture 5
Same model may have multiple batches, images only for reference.

IRFB4710PBF

Part No IRFB4710PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 75A TO-220AB
Datasheet
IRFB4710PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 100V
Continuous Drain Current at 25°C 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5.5V @ 250μA
Max Gate Charge 170nC @ 10V
Max Input Capacitance 6160pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.8W (Ta), 200W (Tc)
Maximum Rds On at Id,Vgs 14 mOhm @ 45A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-220AB
Dimension TO-220-3
Win Source Part Number 069461-IRFB4710PBF
Family Name IRFB4710
Introduction Date April 30, 2004
ECCN EAR99
Country of Origin China, Mexico
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRFB4710PBF CAD Model

Description

The Infineon Technologies IRFB4710PBF is a N-Channel MOSFET designed for use in discrete semiconductor products.

  • Drain-Source Breakdown Voltage: 100V
  • Continuous Drain Current: 75A (Tc)
  • Maximum Rds On at Id,Vgs: 14 mOhm @ 45A, 10V
  • Maximum Gate-Source Voltage: ±20V
  • Maximum Gate Charge: 170nC @ 10V
  • Package: TO-220AB
  • Mounting Type: Through Hole
  • Power Dissipation: 3.8W (Ta), 200W (Tc)
  • Temperature Range: -55°C to 175°C (TJ)
