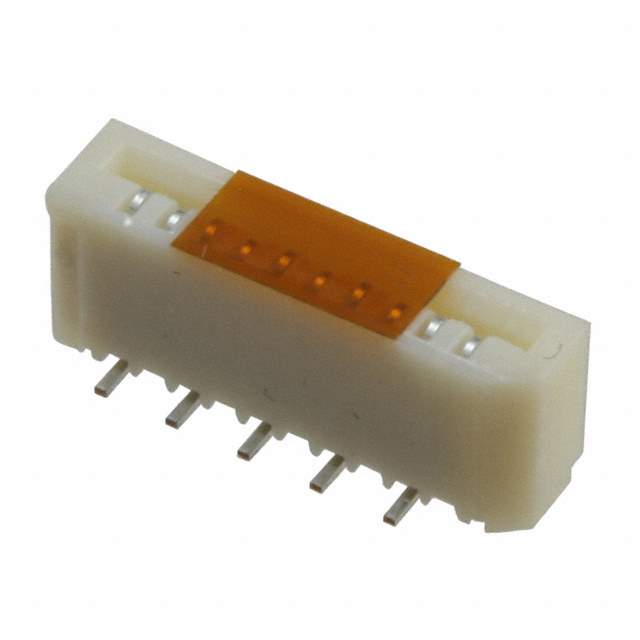

The Molex 52808-1071 is a Flat Flex Cable (FFC) or Flat Printed Circuit (FPC) connector designed for establishing a secure and reliable electrical connection between a flexible cable and a printed circuit board (PCB). Part of Molex's comprehensive range of interconnect solutions, this connector aims to provide optimal signal integrity and mechanical robustness in a variety of electronic applications.

Applications

• Digital signage
• Security cameras
• Gaming peripherals
• Point-of-sale (POS) systems
• Industrial automation equipment
• Office automation equipment (printers, scanners)

Features

• Compact size to maximize space on the PCB
• High-temperature resistant housing compatible with reflow soldering
• Reliable locking mechanism to prevent accidental disconnections
• Gold-plated contacts for superior electrical conductivity
• RoHS compliant for environmental safety
• Halogen-free construction
• Polarization features for correct mating

Benefits

• Provides stable and consistent electrical performance
• Enables easy and quick cable assembly
• Optimizes the use of PCB space
• Offers long-term reliability in demanding environments
• Meets industry standards for environmental responsibility
• Reduces the risk of cable disconnections

Additional Details

The Molex 52808-1071 FFC/FPC connector is defined by its specific pitch (distance between contacts) and the number of circuits it supports, which determines compatibility with particular FFC/FPC cable types. The housing is typically constructed from high-temperature thermoplastic, designed to withstand the high temperatures encountered during reflow soldering processes. Key specifications also include current and voltage ratings, essential considerations for ensuring safe and reliable operation within its intended application. Polarization features help prevent mis-mating, and strain relief mechanisms are often incorporated to reduce stress on the cable and connection points, thus enhancing overall durability.
