54819-0511

Name: 54819-0511
Brand: Molex, LLC
SKU: 420441
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	54819-0511
Manufacturer	Molex, LLC
Catalog	USB, DVI, HDMI Connectors

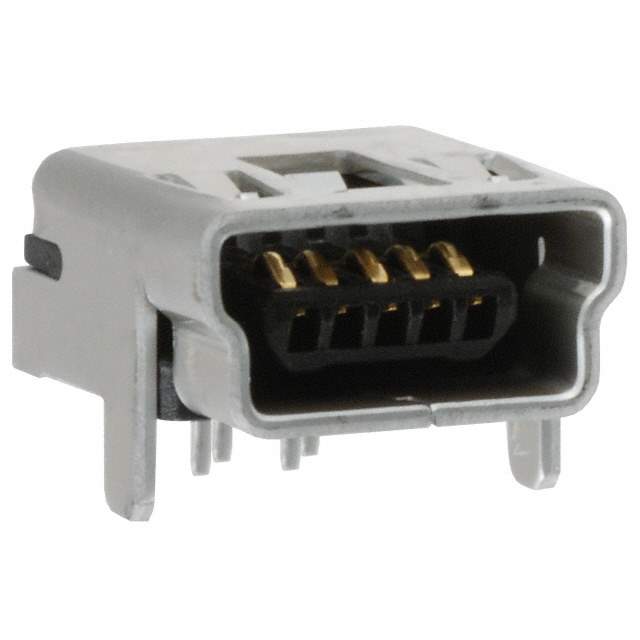

Description	USB On-The-Go (Otg) Mini-B Receptacle Right Angle Through Hole Solder Tails And / CONN USB RECEPTACLE 5POS RT ANG
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex Connector Corporation
Packaging	Tray
Status	Obsolete(EOL)
Connector Type	USB - mini B
Number of Contacts	5
Gender	Receptacle
Specifications	USB 2.0 OTG
Mounting	Through Hole, Right Angle
Mounting Feature	Horizontal
Termination	Solder
Temperature Range - Operating	0°C to 50°C
Number of Ports	1
Current Rating	1A
Voltage Rating	30V
Contact Finish	Gold
Shell/Shielding Material	Copper Alloy
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Win Source Part Number	1006092-54819-0511
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	54819
Introduction Date	March 31, 2010
ECCN	EAR99
Country of Origin	China, Hong Kong, Japan
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian 54819-0511 CAD Model

Alternative Products

Description

This Molex mini USB connector is an essential component for any electronic device requiring high-speed data transfer.

Voltage Rating: 30V
Current Rating: 1A
Contacts: 5
Type: Receptacle
Applications: USB 2.0 OTG
Material Flammability Rating: UL94 V-0
Mounting: Through Hole, Right Angle
Mounting Feature: Horizontal
MSL Level: Vendor Undefined
HTSUS Code: 8536.69.4040
